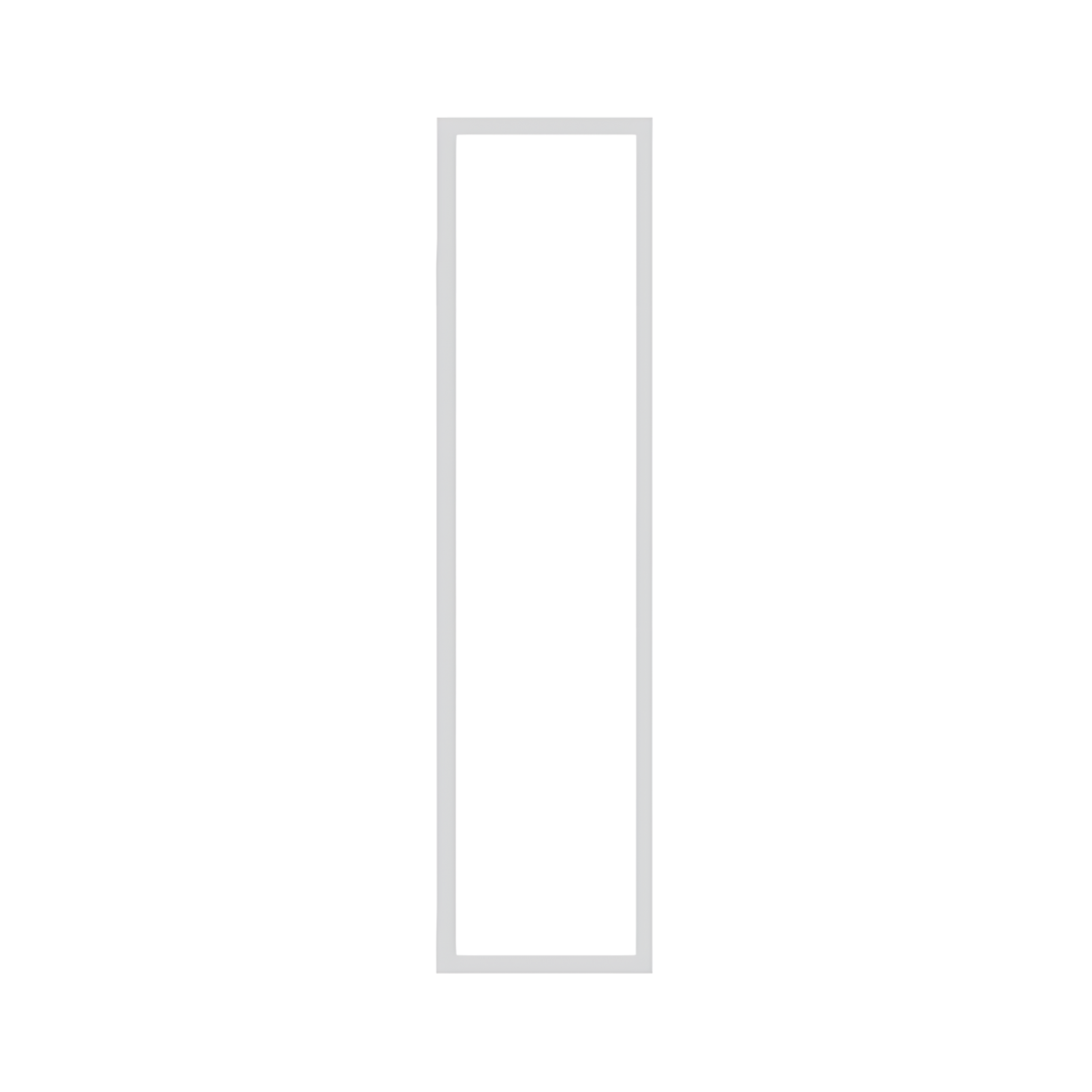

MFP01 Series LED Panel

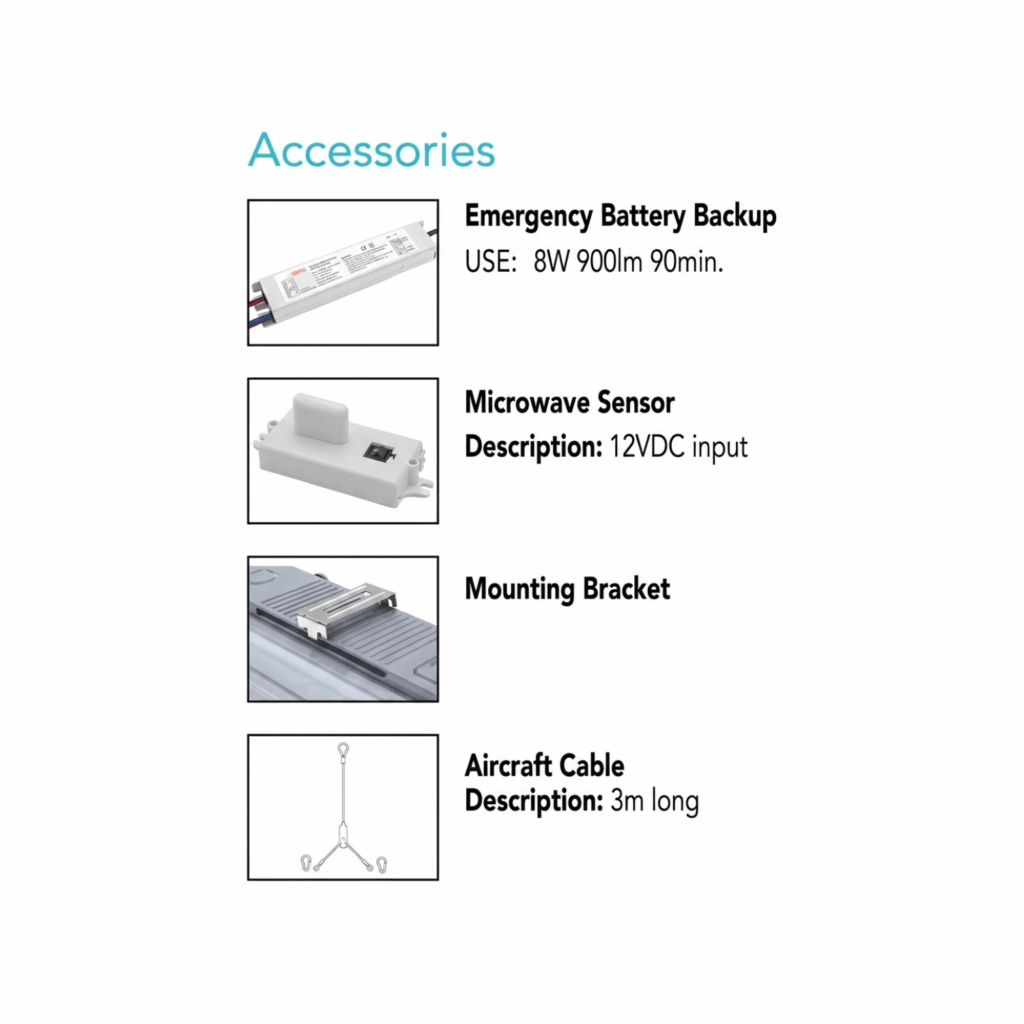

The MFP01 Series is a fully configurable LED panel engineered to meet today’s increasingly complex lighting and control requirements. Designed with flexibility and performance in mind, it supports sensor controls, emergency options, and high-lumen outputs. Its low-profile, back-lit design delivers uniform illumination while fitting easily into shallow plenums.

Ideal for schools, offices, healthcare facilities, and other commercial environments.

Housing

• Aluminum frame provides an optimal balance of lightweight design and structural strength

• One-piece housing functions as a heat sink, maximizing thermal management and extending LED lifespan

• Standard T-bar design ensures secure and easy installation in grid ceilings

LEDs

• LM-80 certified, high-performance, and reliable LED technology

Electrical

• Universal input voltage: 120–277 VAC

• Standard 0–10V dimming, allowing smooth dimming from 10% to 100%

Mounting Options

• Surface mount

• Recessed mount

• Suspended mount

Certifications

• UL Listed

• Suitable for damp locations

Ambient Operating Temperature

• -17°C to 45°C

Recommended Applications

• Institutional facilities

• Commercial spaces

• Retail environments
