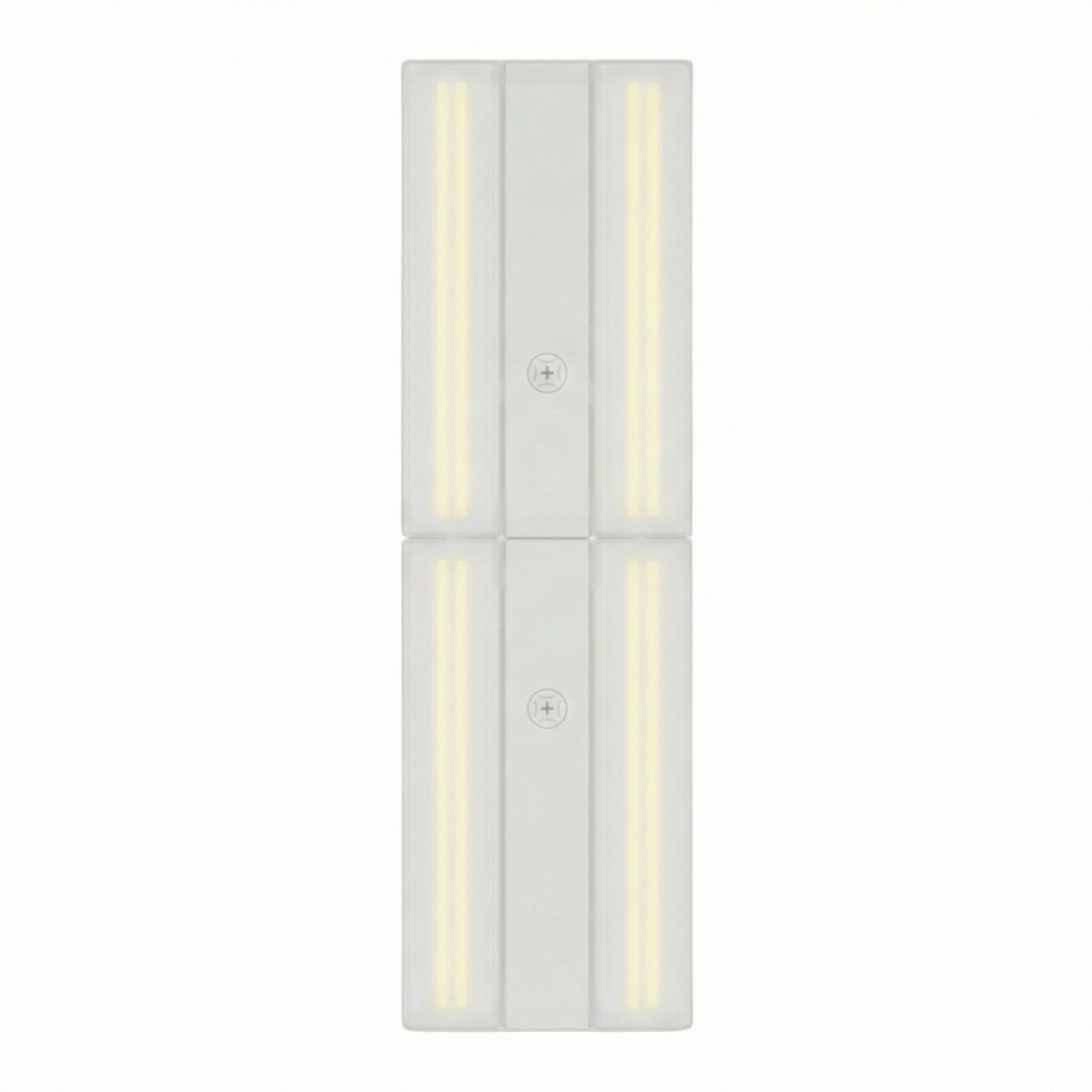

MLH07 Linear High Bay Series

The new-generation MLH07 Linear High Bay Series delivers high energy efficiency, excellent light uniformity, and long service life while helping reduce overall project costs. Designed for both retrofit and new installations, it offers a compact structure that allows for faster and easier installation.

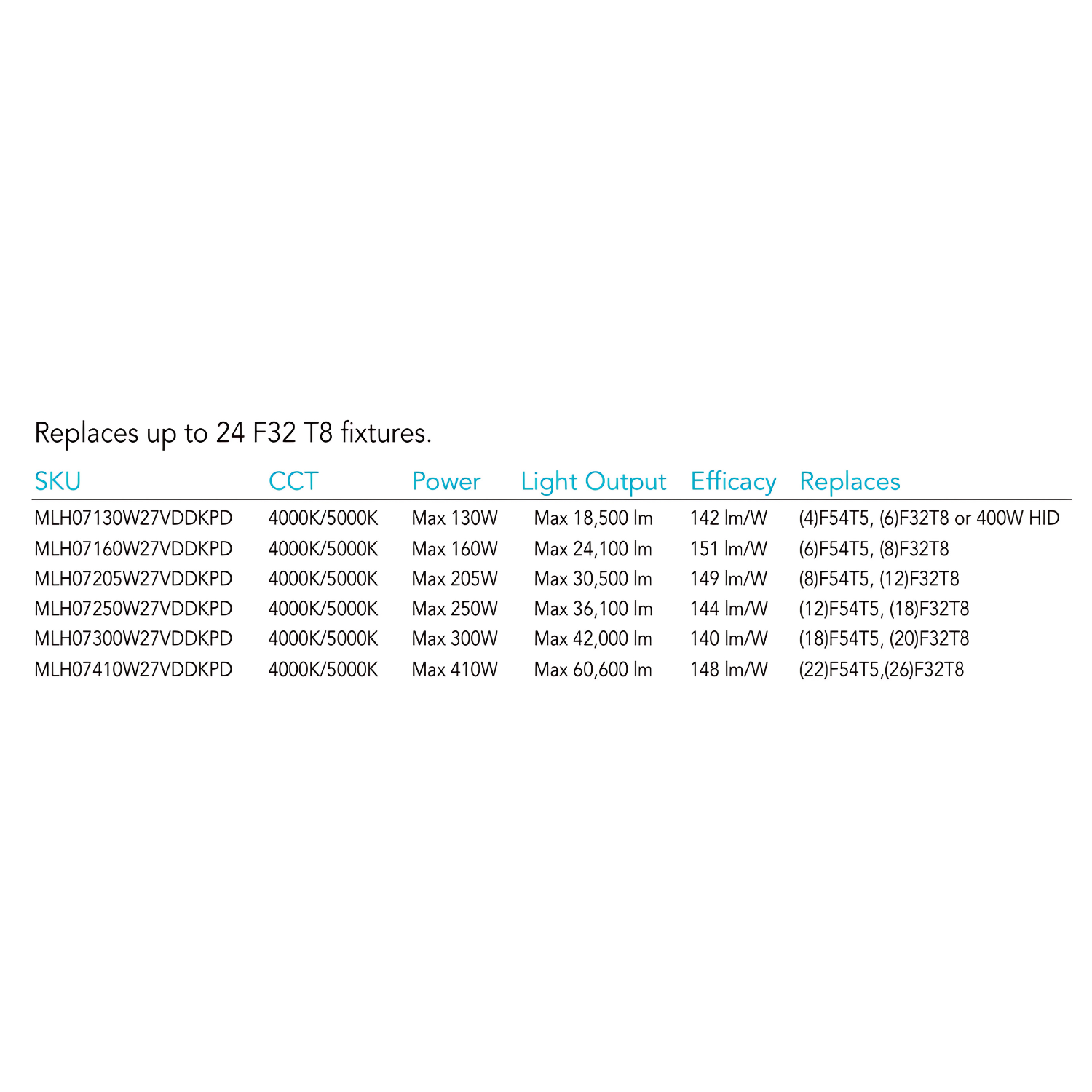

Each model features CCT and wattage selectability, providing greater flexibility during on-site installation and significantly reducing inventory and SKU requirements—making it a cost-effective solution for contractors and facility managers.

Housing

• Durable die-cast housing for enhanced strength, stability, and superior thermal conductivity

• Clean white-coated finish

LEDs

• LM-80 certified, high-performance and reliable LEDs

Electrical

• Universal input voltage: 120–277 VAC or 347–480 VAC

• Standard 0–10V dimming (10%–100%)

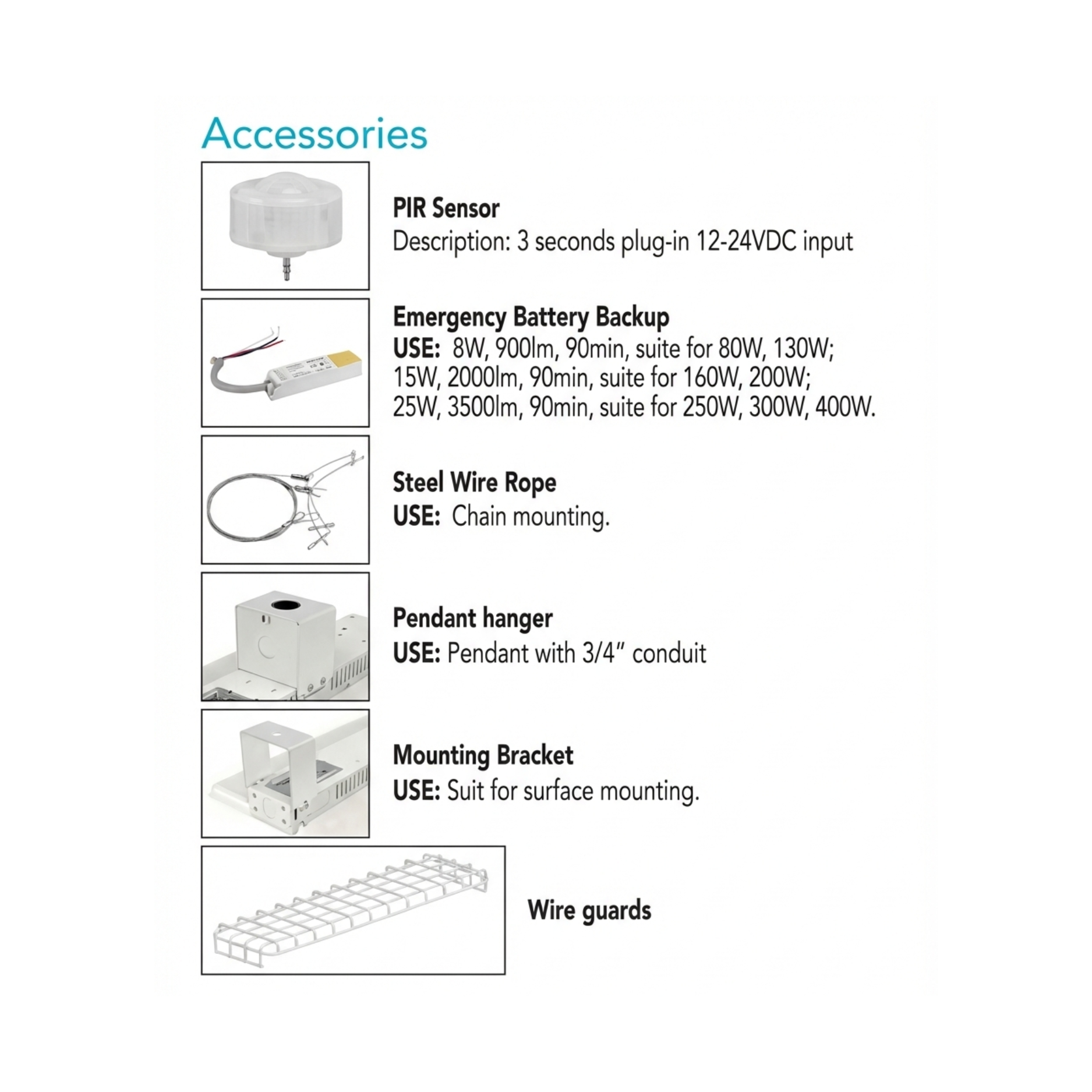

Mounting Options

• Pendant mount

• Surface mount

Certifications

• UL Listed

• Suitable for damp locations

Ambient Operating Temperature

• -40°C to 50°C

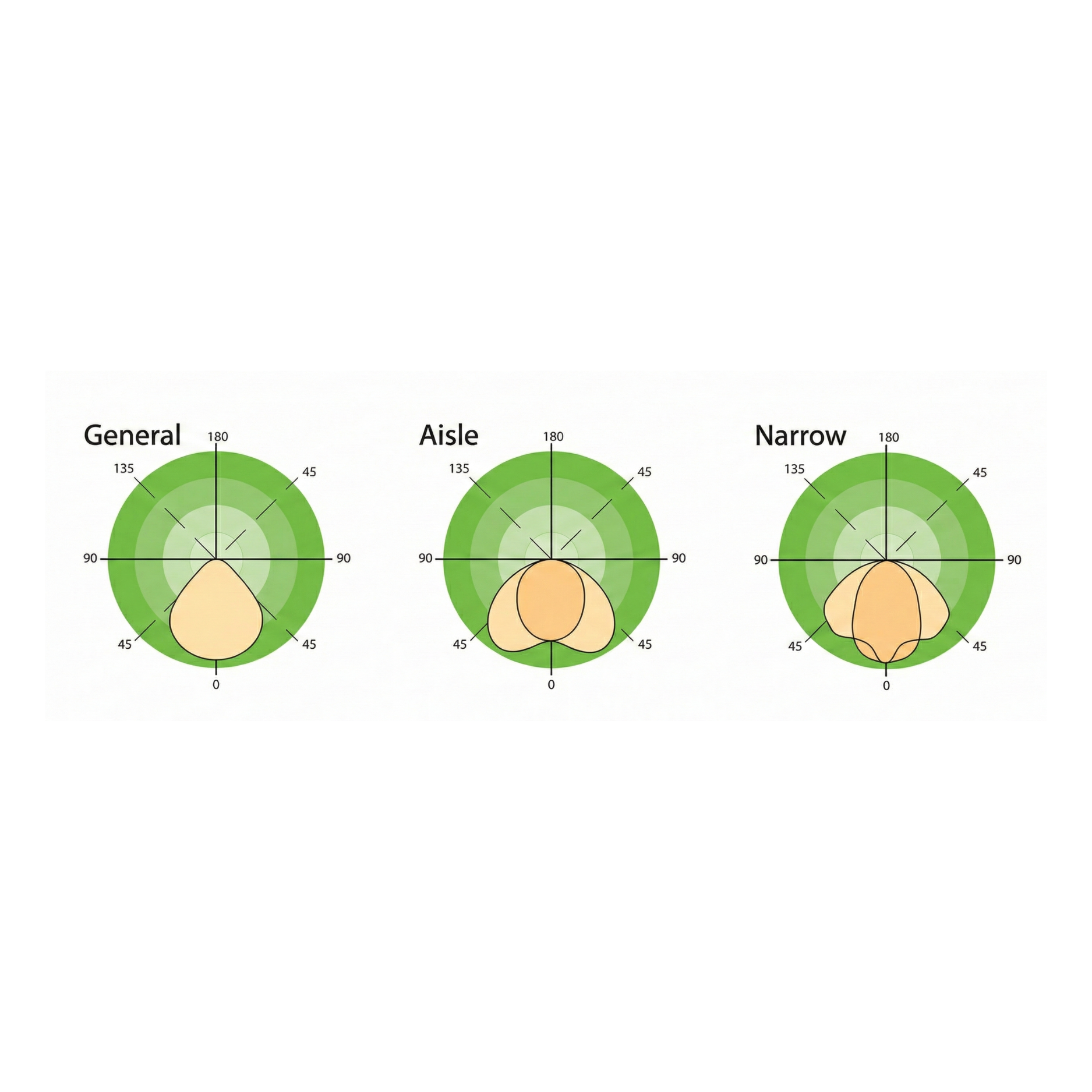

Distribution Options

• Prismatic diffuser

• Aisle optics

• Narrow optics

Recommended Applications

• Offices

• Warehouses

• Commercial lighting environments
