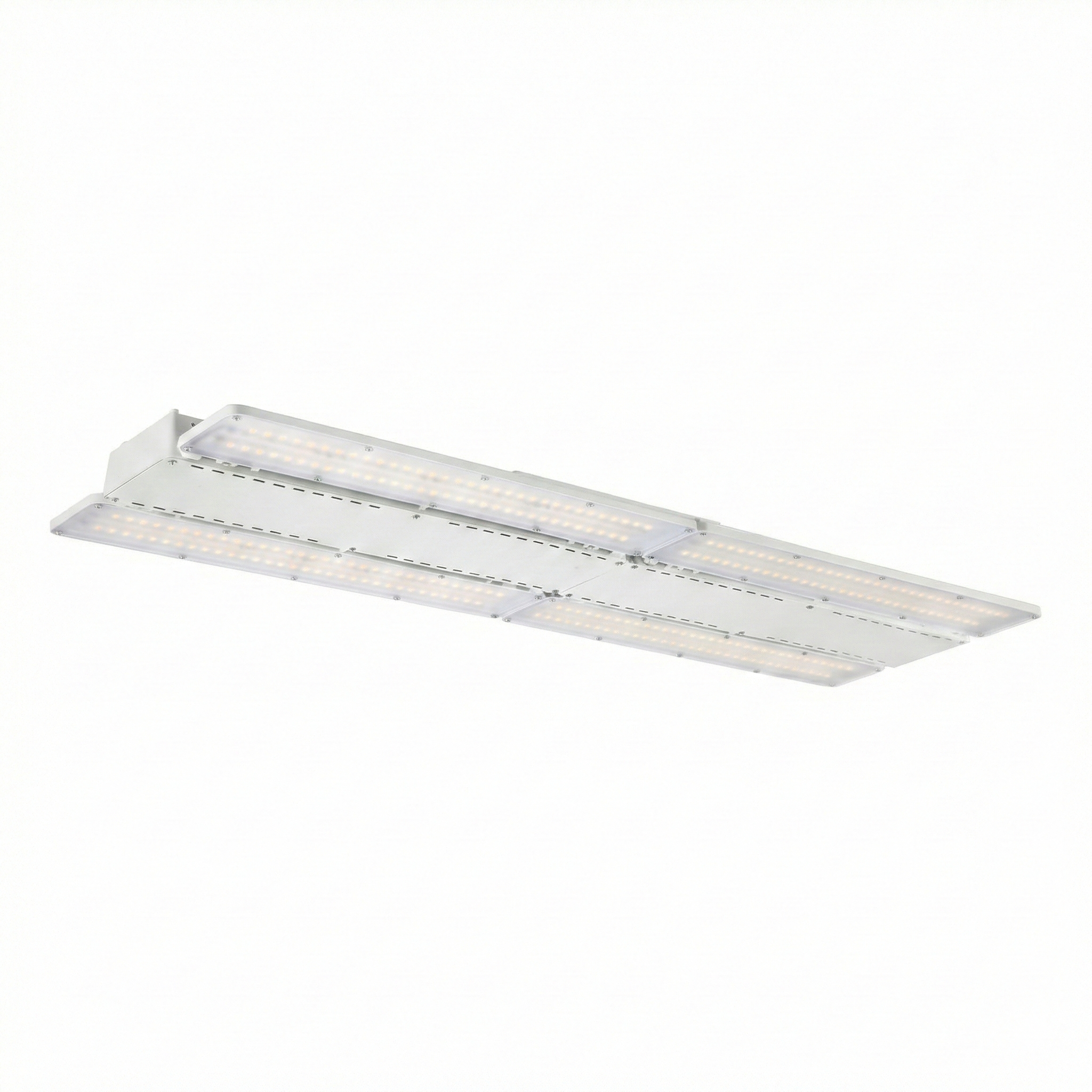

MLH05 Series Linear High Bay Fixture

The MLH05 Series is an economical and reliable lighting solution designed for warehouses, factories, convention centers, and gymnasiums. Offering two lumen packages with a wide output range from 12,200 to 60,000 nominal lumens, it provides flexibility for various ceiling heights and lighting requirements.

Designed for easy installation, the MLH05 series fits most existing luminaires and serves as an efficient replacement for linear fluorescent fixtures in both new construction and renovation projects. Optional occupancy sensors and emergency battery backup enhance functionality and safety.

Housing

• Durable die-cast housing for superior strength, stability, and thermal performance

• Clean white-coated finish

LEDs

• LM-80 certified, high-performance and reliable LEDs

Electrical

• Universal input voltage: 120–277 VAC or 347–480 VAC

• Standard 0–10V dimming (10%–100%)

Mounting Options

• Pendant mount

• Surface mount

Certifications

• UL Listed

• Suitable for damp locations

Ambient Operating Temperature

• -40°C to 55°C

Distribution Options

• Medium lens

• Aisle lens

• Prismatic diffuser

Recommended Applications

• Offices

• Warehouses

• Commercial lighting environments
