GripLuxe

Type: Stainless Steel Handle (Big)
Main Material: S.S 304
Surface Finish: Satin
Applicable Door Type: Wooden door, Framed door
Applicable Door Thickness: 10–50 mm
(For doors thicker than 50 mm, the coupling screw needs to be replaced)
Drilling Size:

  • Glass doors: Φ14 mm
  • Wooden or framed doors: Φ10 mm

Guaranteed Safe Checkout

Features & Compatibility

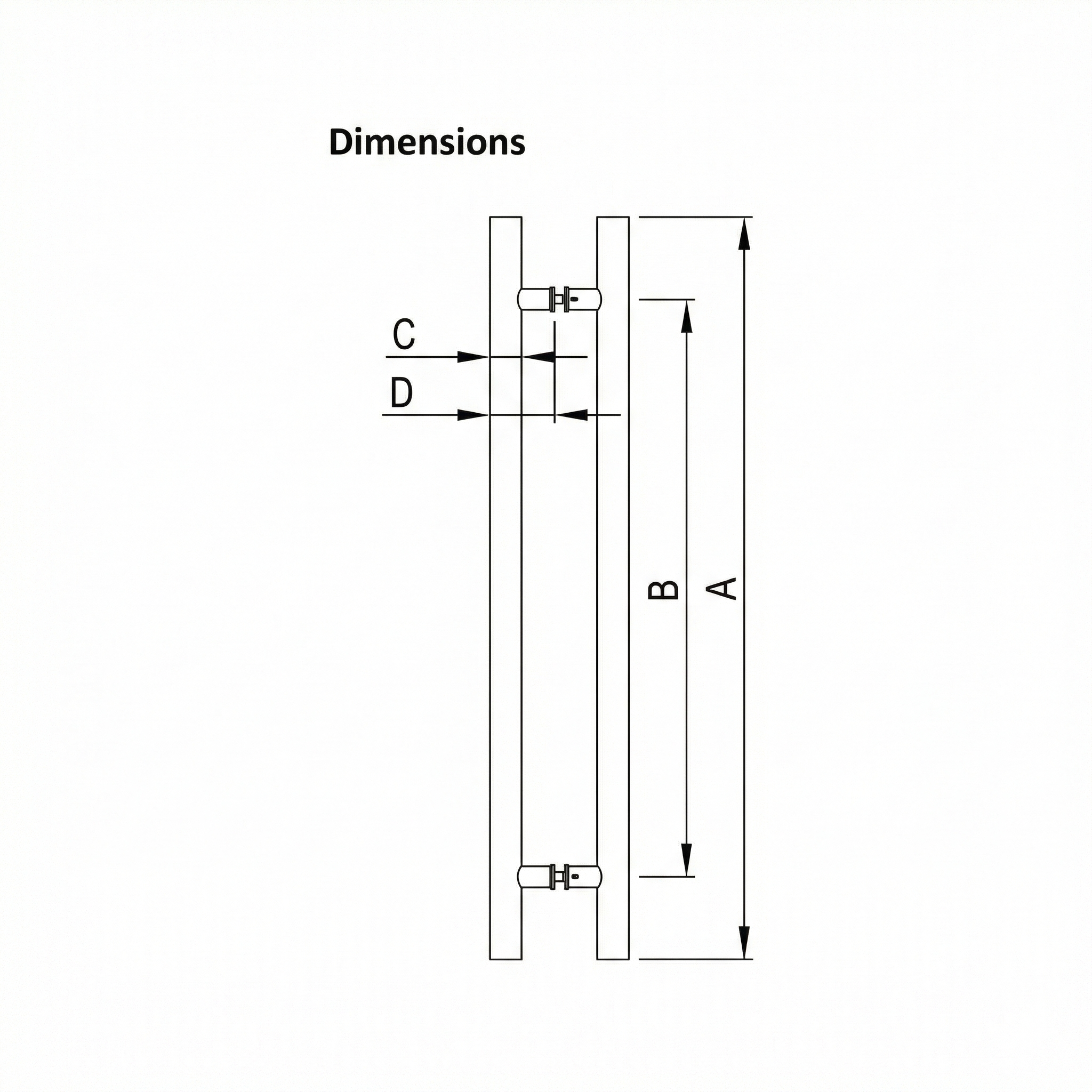

Specification

  • KLS10108 – A: 800 mm, B: 600 mm,   C: Φ38 × 0.8 mm, D: 80 mm

  • KLS10110 – A: 1000 mm, B: 800 mm,  C: Φ38 × 0.8 mm, D: 80 mm

  • KLS10112 – A: 1200 mm, B: 1000 mm, C: Φ38 × 0.8 mm, D: 80 mm

  • KLS10115 – A: 1500 mm, B: 1300 mm,  C: Φ38 × 0.8 mm, D: 80 mm

  • KLS10118 – A: 1800 mm, B: 1500 mm,  C: Φ38 × 0.8 mm, D: 80 mm

  • KLS10120 – A: 2000 mm, B: 1700 mm, C: Φ38 × 0.8 mm, D: 80 mm
