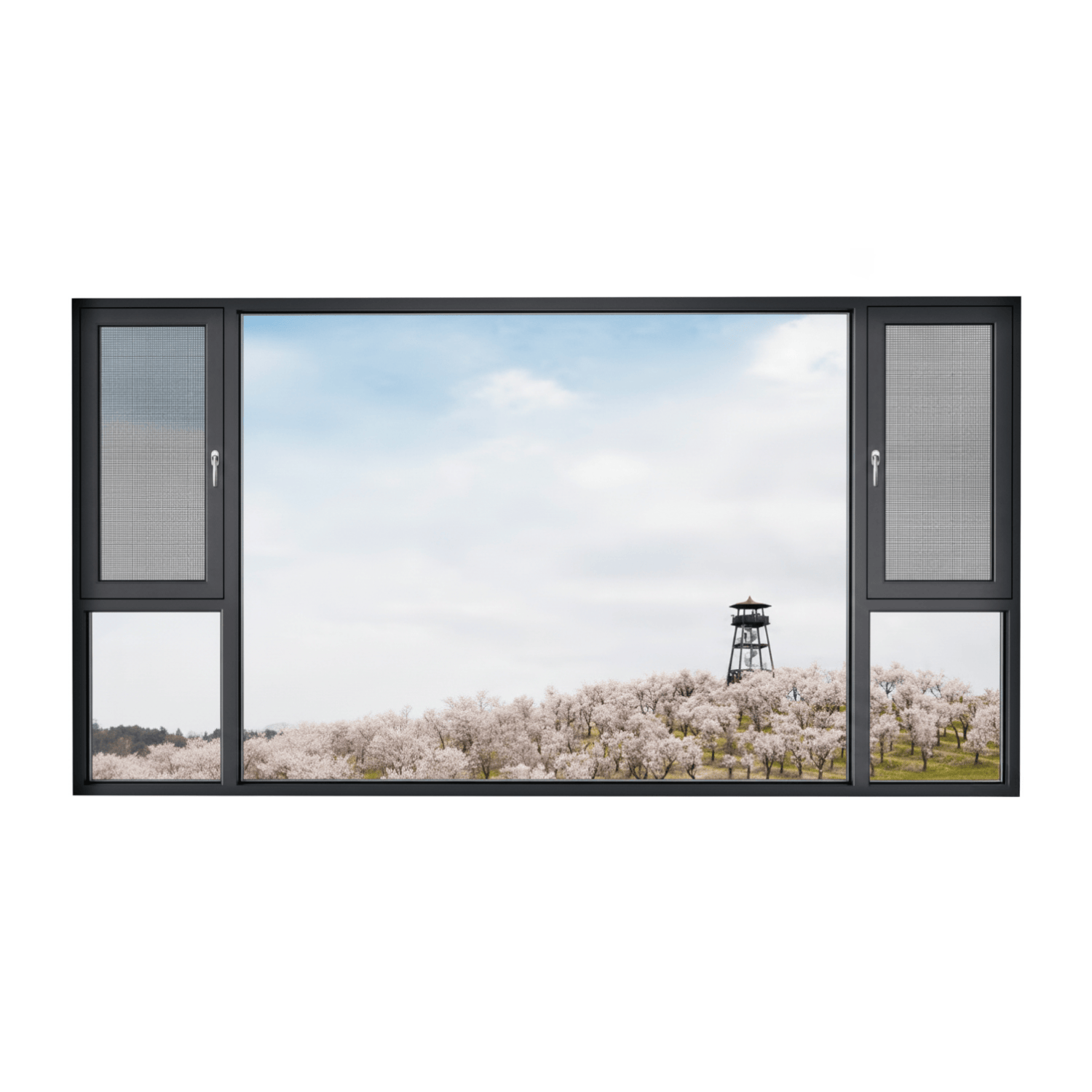

OFTYN Window Screen Casement Window (Flat Frame)

Material: Aluminum

Thickness: 1.8–2.0 mm

Standard: European Standard 6060-T5 (High Strength)

Profile Strength: Allowable Strength = 84.2 N/mm²

Track Width: 140 mm

Door Leaf Width:

Outer Frame: 40.6 mm

Sash: 82 mm

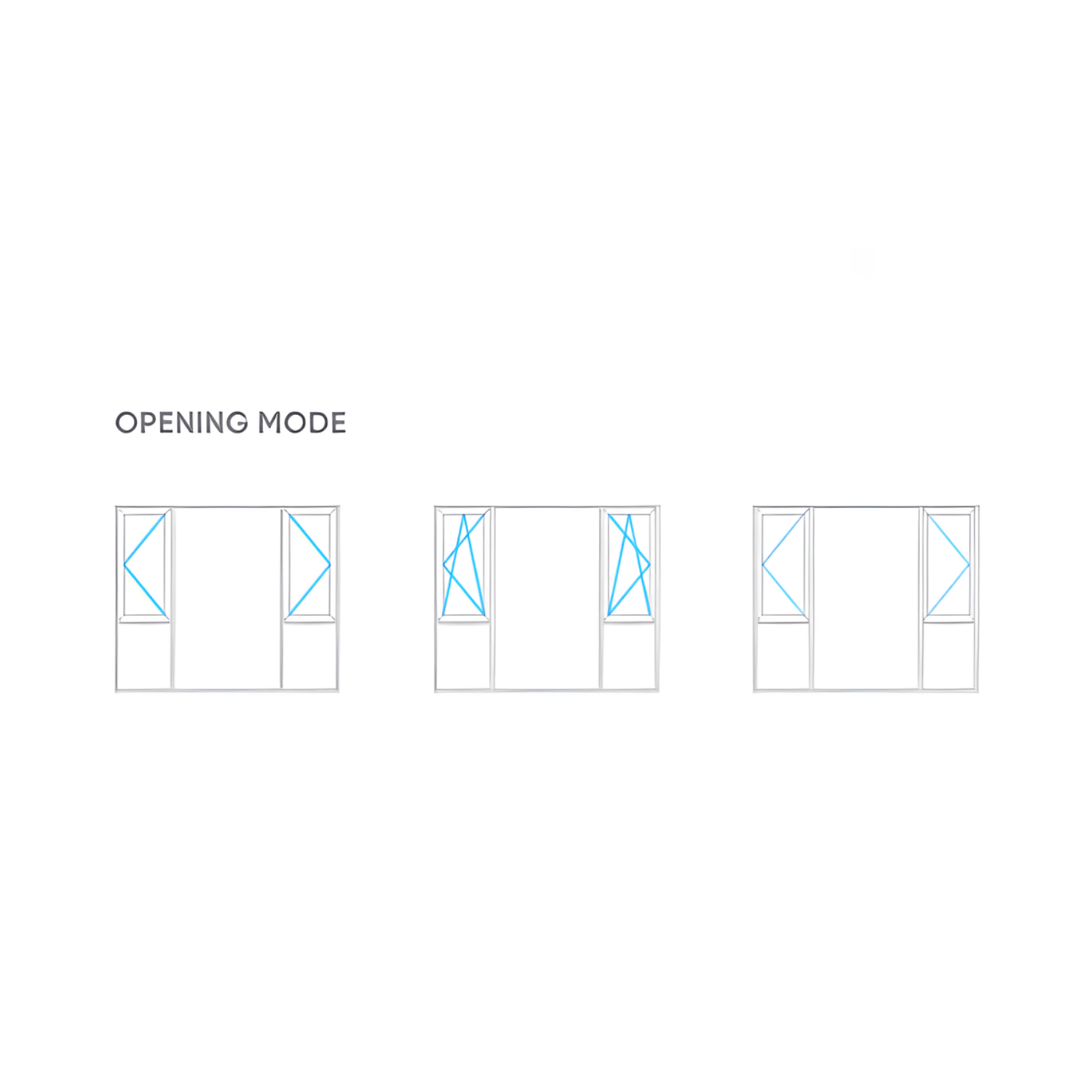

Opening Modes: Inward Opening, Outward Opening, Awning Opening

Guaranteed Safe Checkout

Features & Compatibility

WINDOW SCREEN CASEMENT WINDOW (FLAT FRAME)

The Window Screen Casement Window (Flat Frame) features a sleek indoor and outdoor flat frame design that delivers a modern, minimalist appearance. Engineered with high-strength European standard aluminum profiles and superior sealing systems, this window offers excellent thermal insulation, watertight performance, and durability. It includes a hidden drainage structure to prevent rainwater infiltration and reduce sound transmission, ensuring a comfortable and quiet indoor environment. The integrated flyscreen system provides added protection and ventilation, making it ideal for both residential and commercial applications.

Specifications

Thermal Insulation

Insulation Strips: PA66 nylon insulation strips, Cuts off heat transfer channels, Provides stable thermal insulation performance

Drainage & Sealing

Drainage: Hidden drainage structure design, Prevents rainwater inversion, Enhances watertight performance

Sealing Tape: EPDM sealing tape, Strong weather resistance, No peculiar smell, Excellent watertight and airtight performance

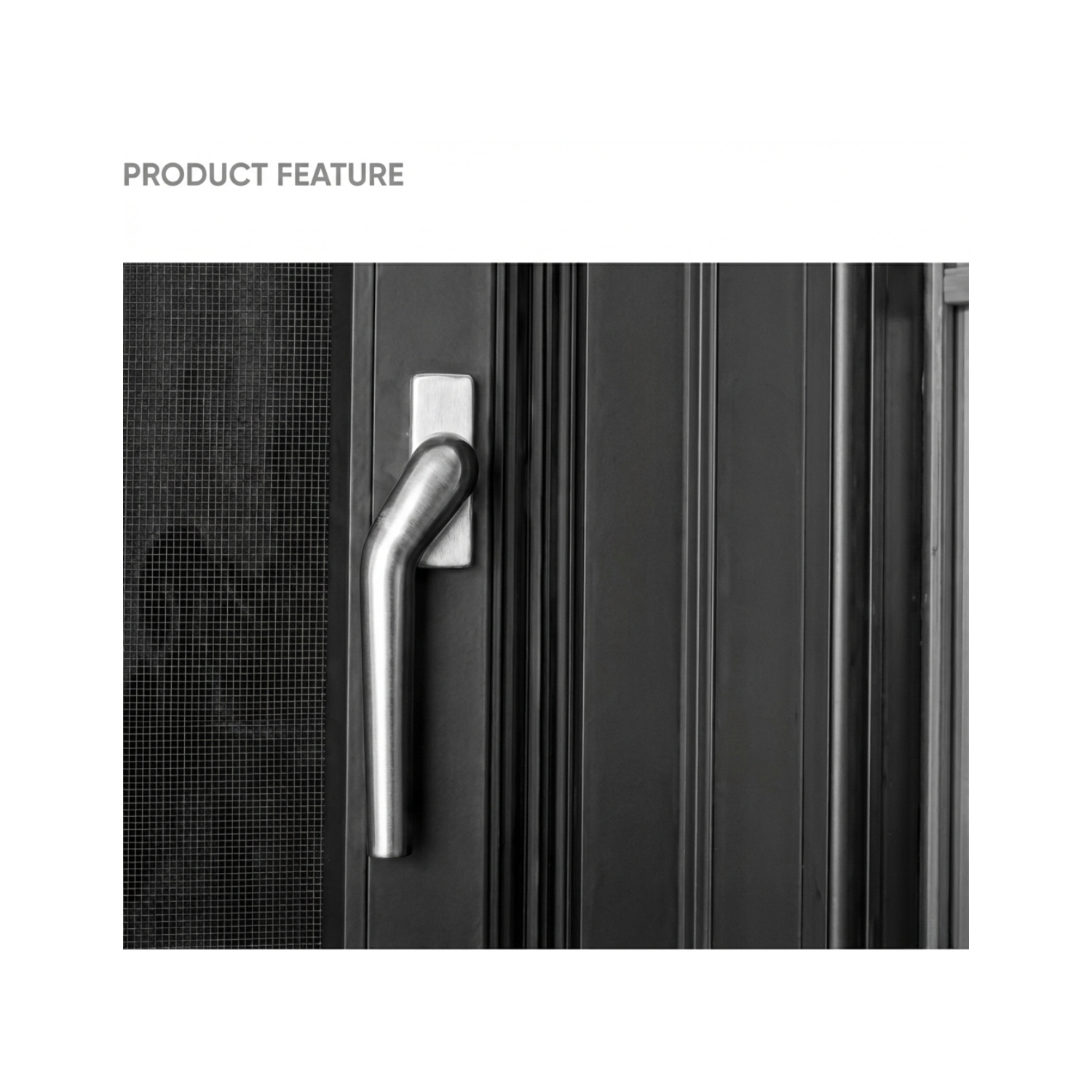

Hardware

Default Lock: Siglia

Default Roller: VBH lock base

Hinge: CMECH

Self-Design Lock: ROGENILAN

Flyscreen

Specification: 304 Stainless Steel Mesh
