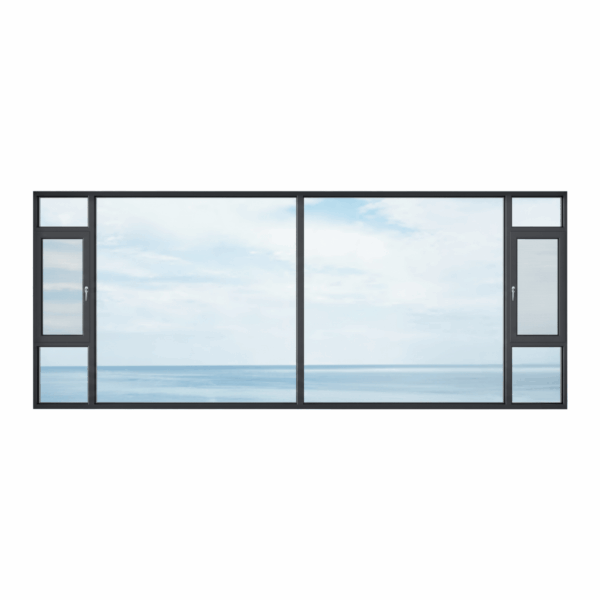

FTVH Casement Window

Material: Aluminum

Thickness: 1.4 mm

Standard: European Standard 6060-T5 (High Strength)

Profile Strength: Allowable Strength = 84.2 N/mm²

Track Width: 45 mm

Door Leaf Width:

Outer Frame: 38 mm

Sash: 78 mm

Type: Double Glazing Tempered Unit

Configuration: 4 mm + 9 mm Air + 5 mm

Opening Modes: Inward Opening, Tilt & Turn, Outward Opening, Awning Opening

Guaranteed Safe Checkout

Features & Compatibility

This Casement Window is crafted with a high-strength aluminum profile and equipped with premium imported German hardware to deliver smooth, quiet, and reliable operation. The precision-engineered handle provides a comfortable grip and effortless rotation, enhancing everyday usability. A glue-injection corner connection reinforces the frame and sash, offering high structural strength, excellent safety performance, and strong resistance to wind pressure. EPDM sealing tape ensures outstanding watertightness and airtightness, making this window a dependable and elegant solution for modern residential and commercial applications.

Specifications

Structural Design

Glue-injection type corner code connection

High structural strength and safety performance

Strong load-bearing capacity

Excellent resistance to wind pressure

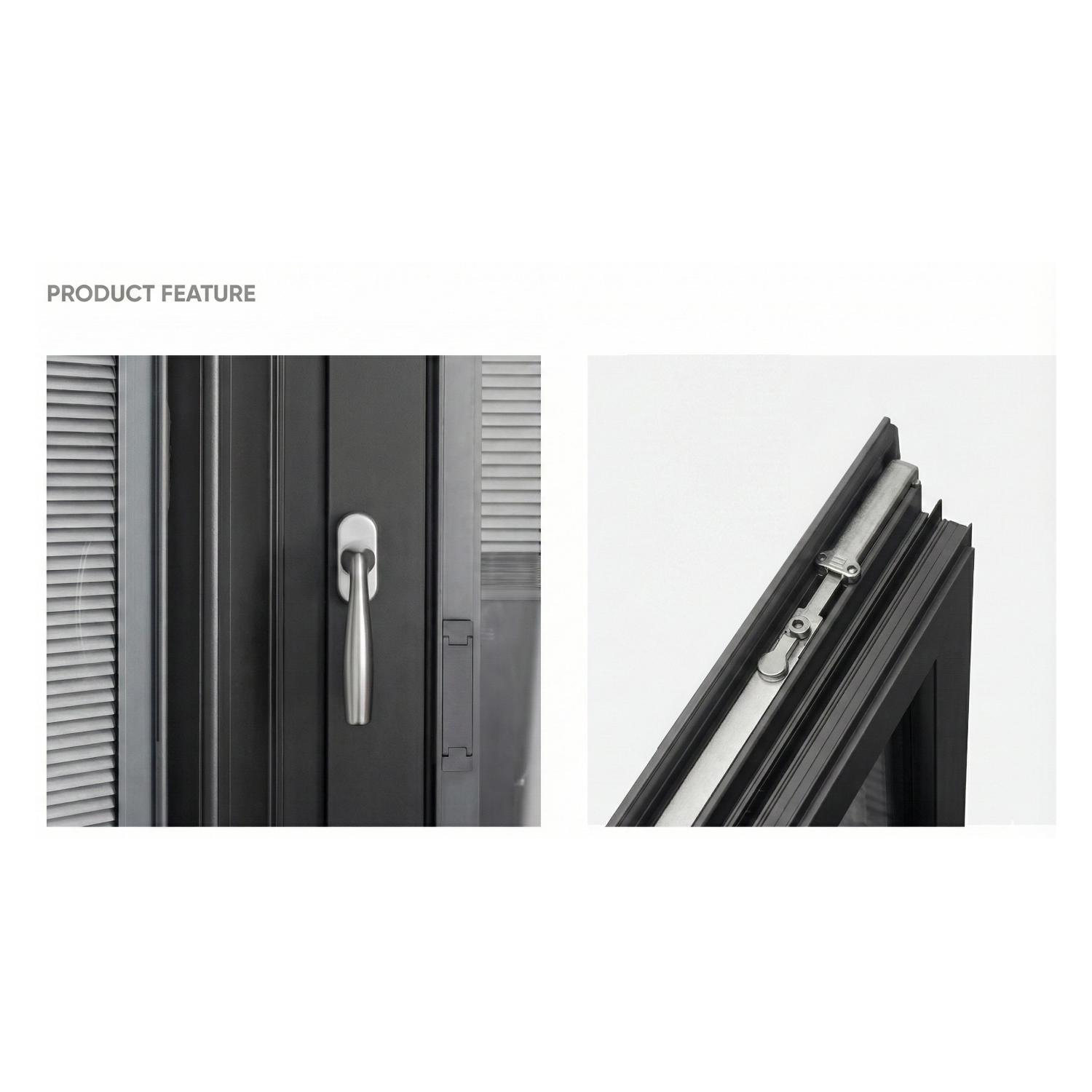

Hardware System

Default Lock: HOPPE (Imported German hardware)

Default Roller / System: ROGENILAN dedicated hardware system

Smooth, quiet operation with refined craftsmanship

Sealing Performance

Sealing Tape: EPDM sealing tape, Strong weather resistance, Environmentally friendly and odor-free, Excellent watertight and airtight performance

Flyscreen

Option: External retractable mesh (optional)
