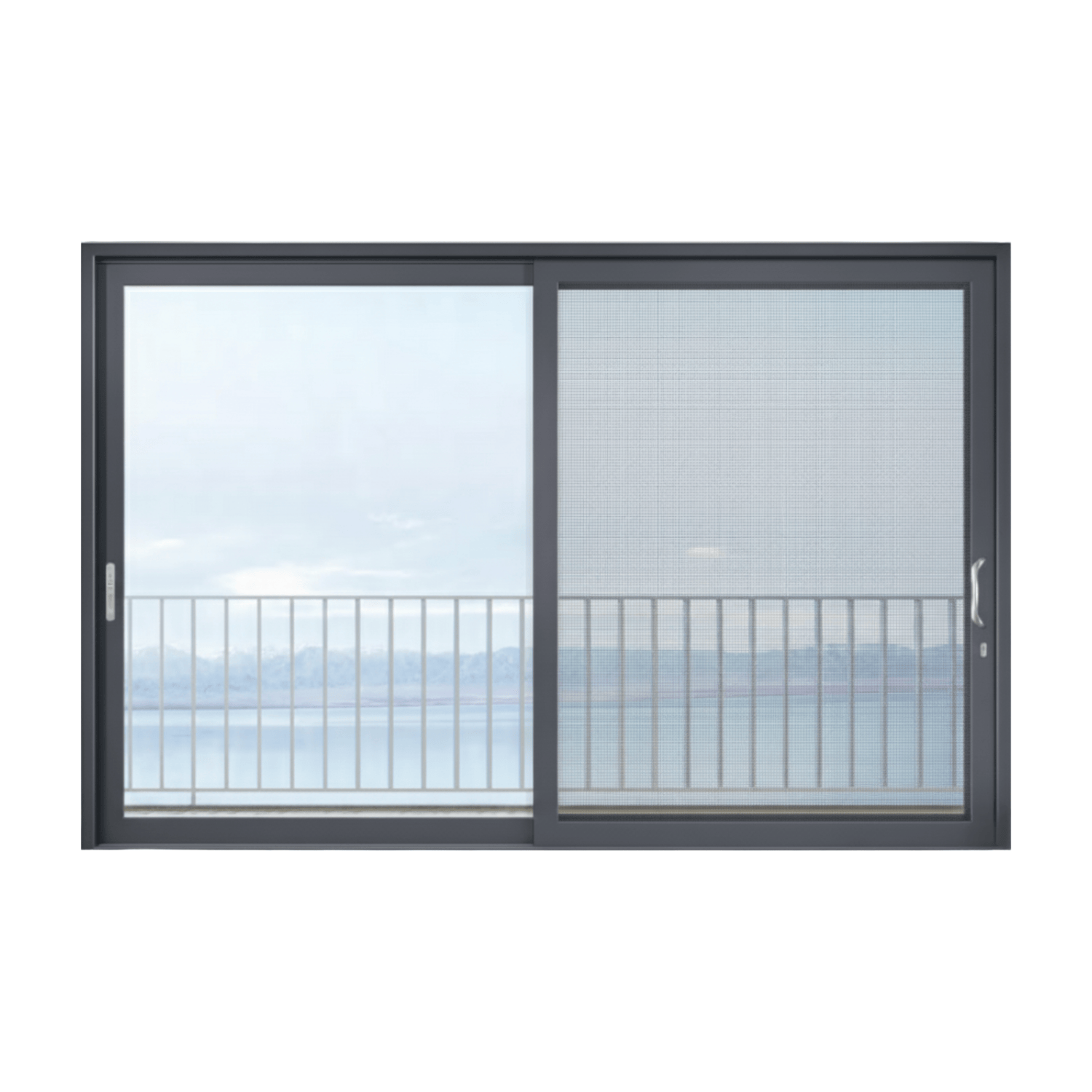

Elysium Door

Aluminum Thickness: 1.6 mm

Material Standard: European Standard 6060-T5 High-Strength Aluminum

Profile Allowable Strength: 84.2 N/mm²

Track Width Options: 2 Tracks: 110 mm, 3 Tracks: 175 mm

Door Leaf Width: 82 mm

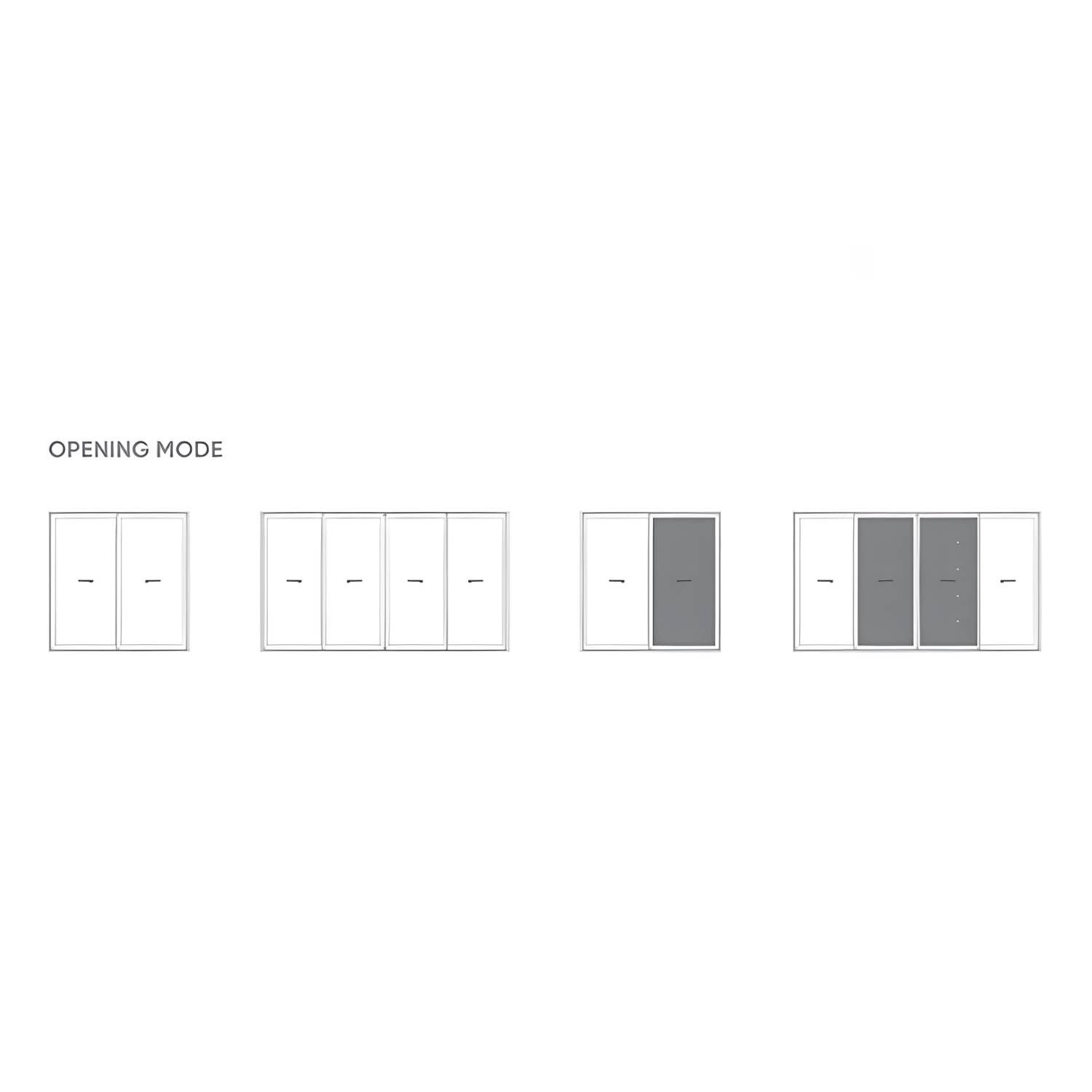

Opening Modes 2 Tracks: (2 Panels / 4 Panels), 3 Tracks: (3 Panels / 4 Panels)

Double Glazing Tempered Unit: 5 mm Tempered Glass + 15 mm Air Space + 5 mm Tempered Glass

Flyscreen: 304 stainless steel mesh

Guaranteed Safe Checkout

Features & Compatibility

Engineered for strength and durability while maintaining a slim and modern profile suitable for large openings.

This insulated glass configuration significantly enhances thermal insulation and soundproofing performance.

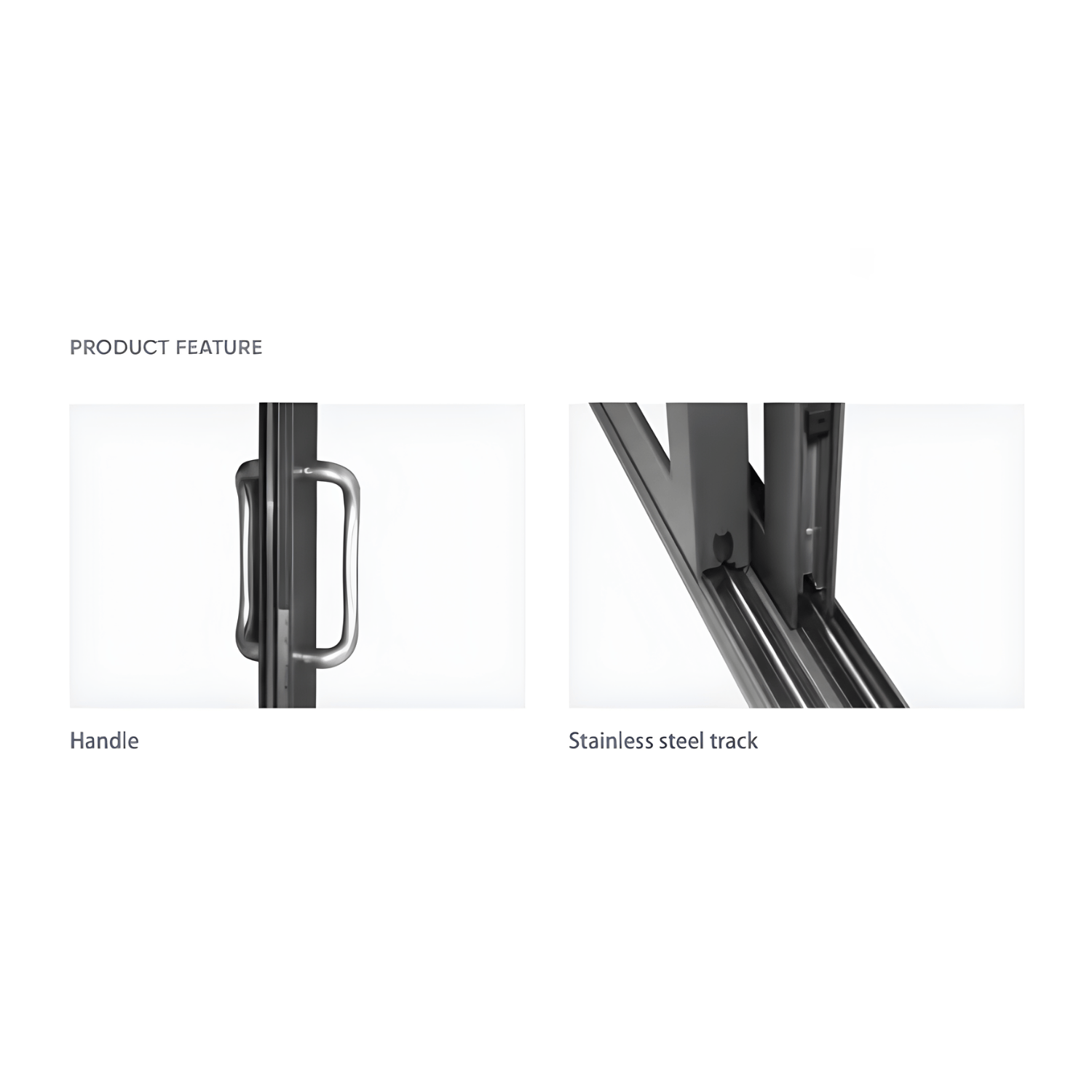

Hardware System

  • Lock: ROGENILAN self-design lock

  • Roller System: EMAOK pulley

  • Handle: HOPO handle

The system adopts a special lock body with a precise mechanical structure, ensuring excellent stability.

The double hook lock design provides dual security protection, offering strong resistance against forced entry.

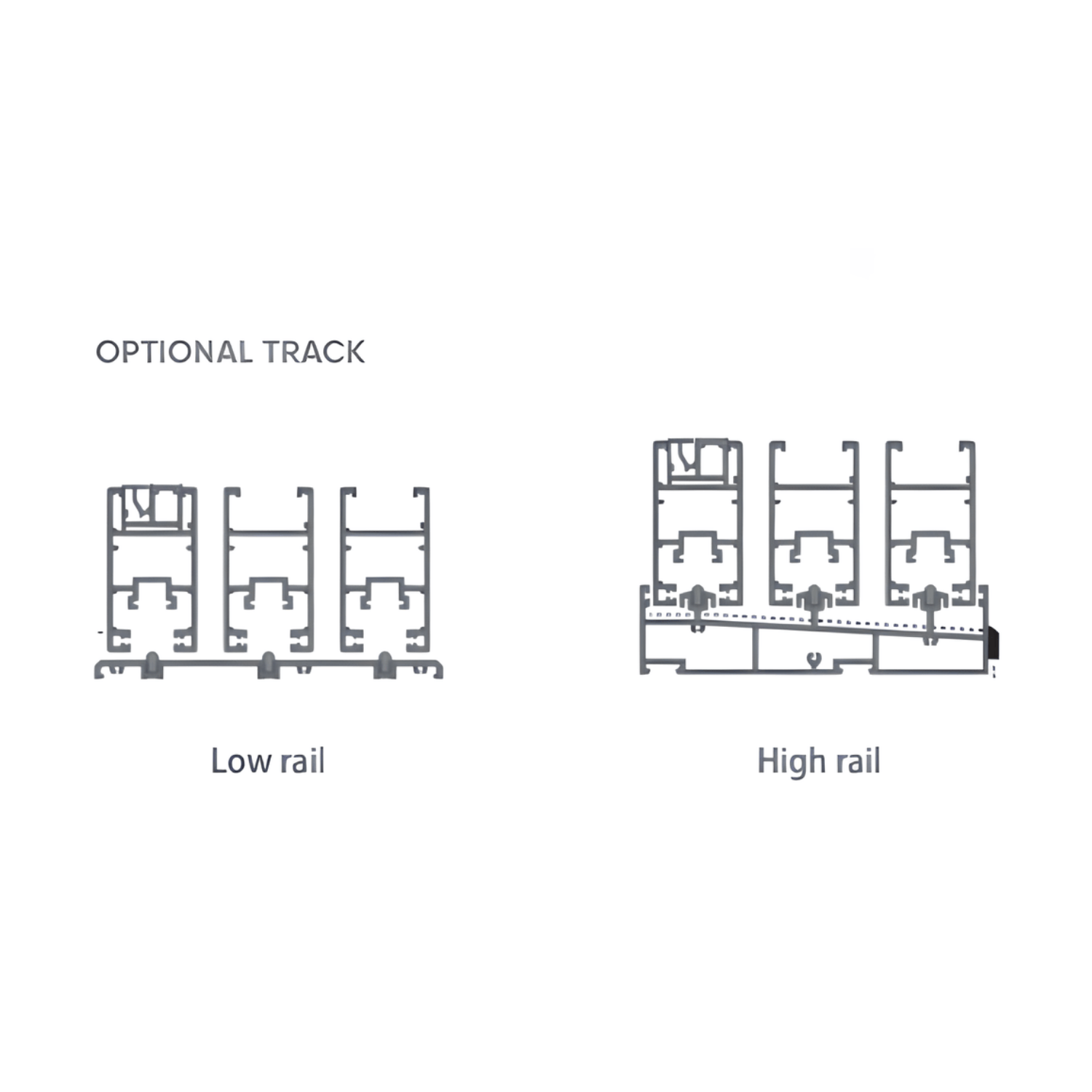

Track Design & Drainage

  • High Track: Effectively prevents water seepage and leakage

  • Low Track: Stainless steel guide rail for smooth, jam-free sliding

This combination is specially designed for balcony applications, balancing drainage performance with smooth operation.

Durability & Performance

  • MA buckle lock with key function

  • Tested for 15,000 opening and closing cycles, maintaining precise self-positioning without displacement

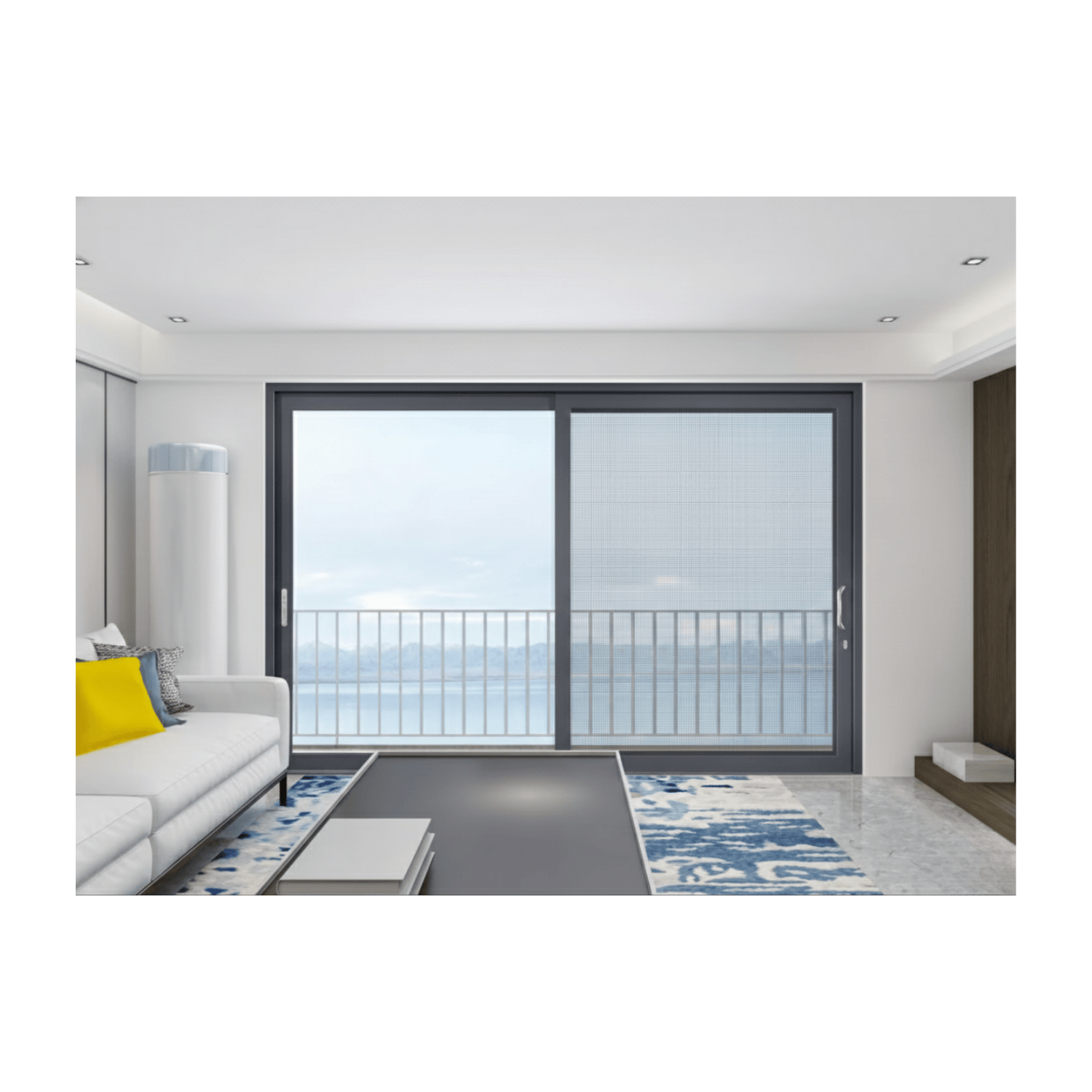

Applications
Ideal for large and premium architectural spaces, including:

  • High-end villas

  • Luxury residences

  • Upscale hotels

  • High-end business clubs
