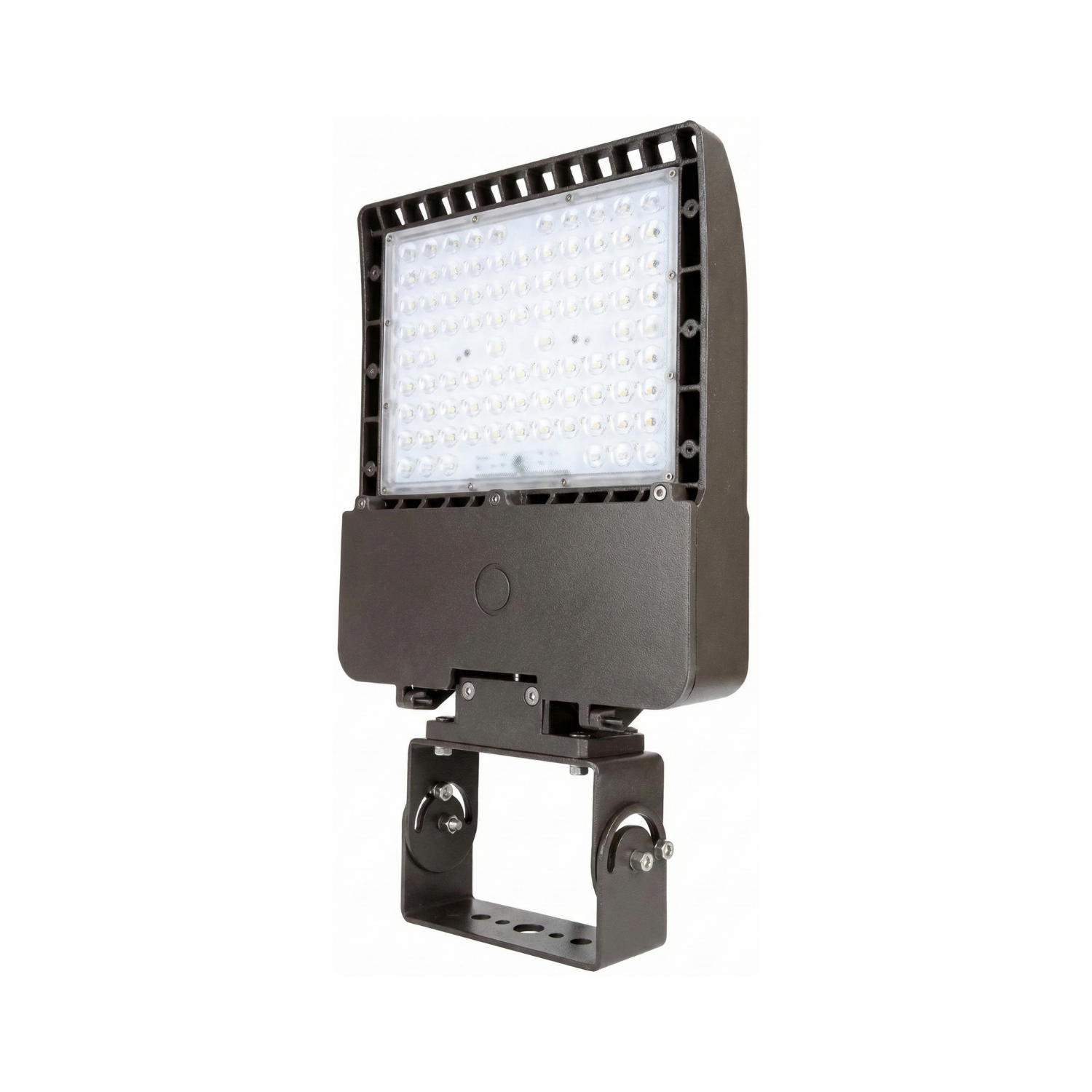

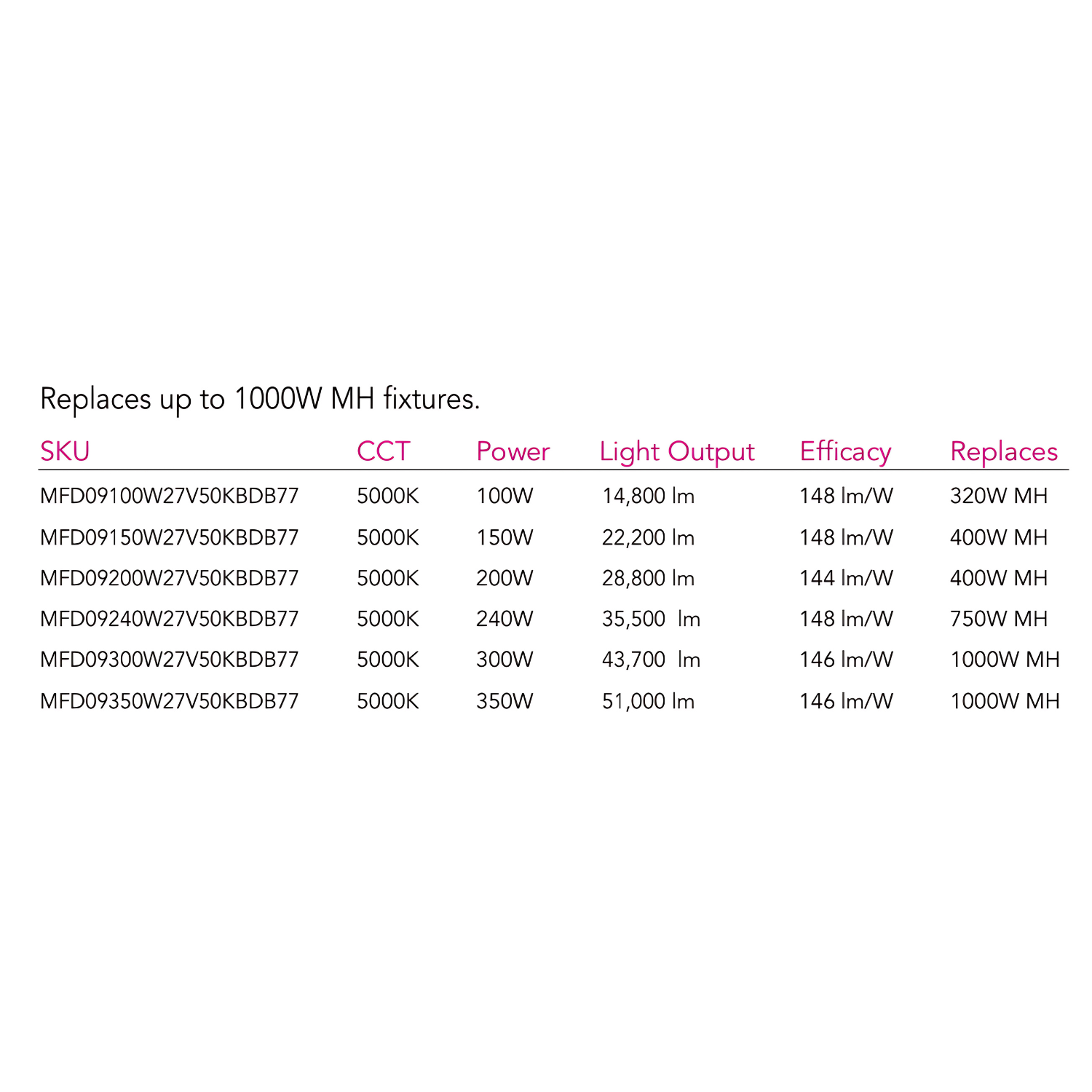

The die-cast aluminum housing features integral heat sink fins to optimize thermal management through both conductive and convective cooling. The LED driver is mounted in direct contact with the casting to ensure low operating temperatures and long service life. Scalable lumen packages ranging from 14,900 to 51,100 lumens allow replacement of up to 1000W metal halide fixtures. A variety of mounting options are available, including wall mount, slipfitter, and trunnion.

Housing

• Rugged die-cast aluminum, corrosion-resistant housing

• Dark bronze polyester powder-coat finish

LEDs

• LM-80 certified, high-performance and reliable LEDs

Electrical

• Universal 120–277 VAC, 347 VAC, or 480 VAC input voltage

• Standard 0–10V dimming (10%–100%)

Mounting

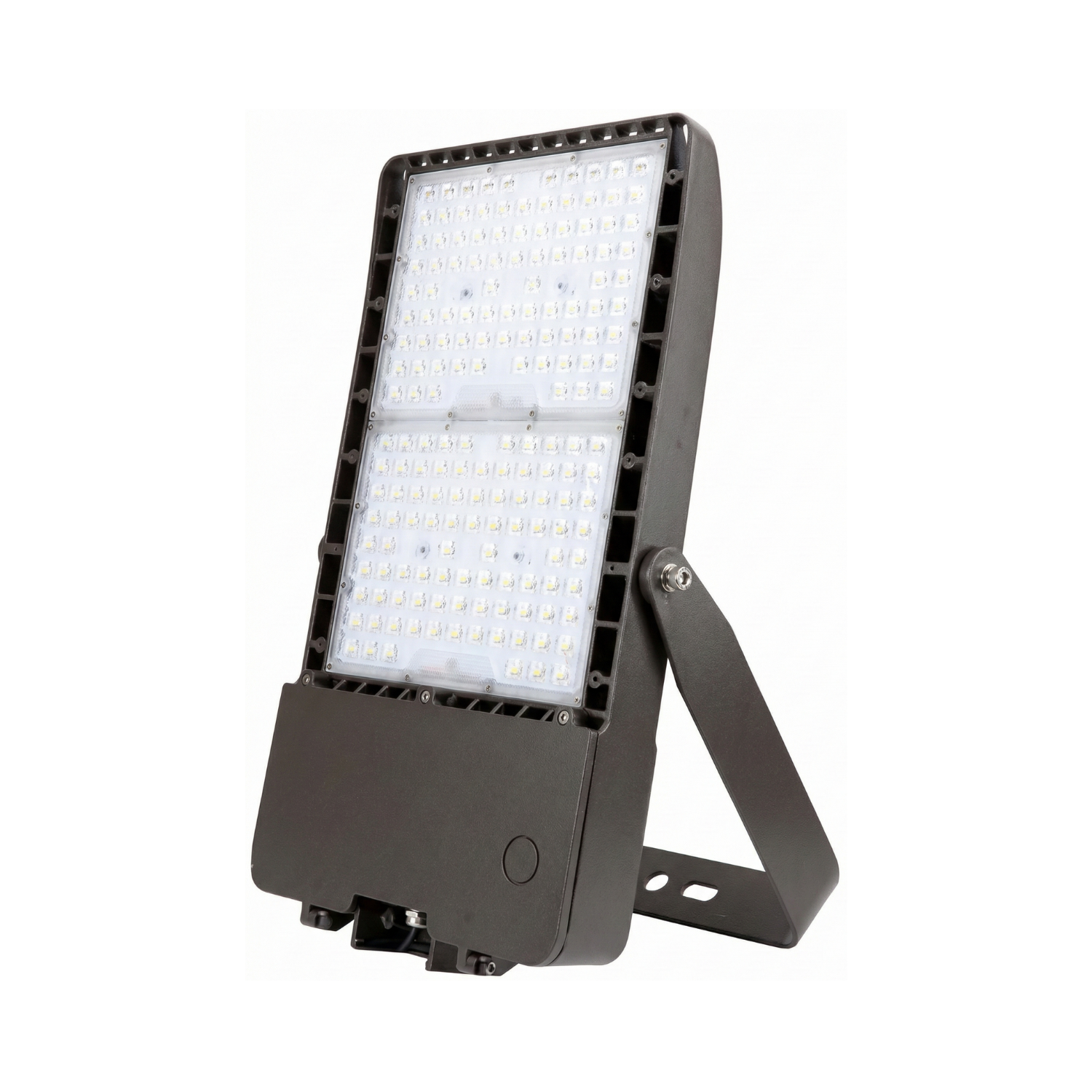

• Wall mount, Slipfitter, or Trunnion (Yoke)

UL Listing

• Rated for wet locations

Recommended Use

• Landscape lighting

• Building facades

• Commercial lighting

Distribution

• 6H × 7V / 7H × 7V
