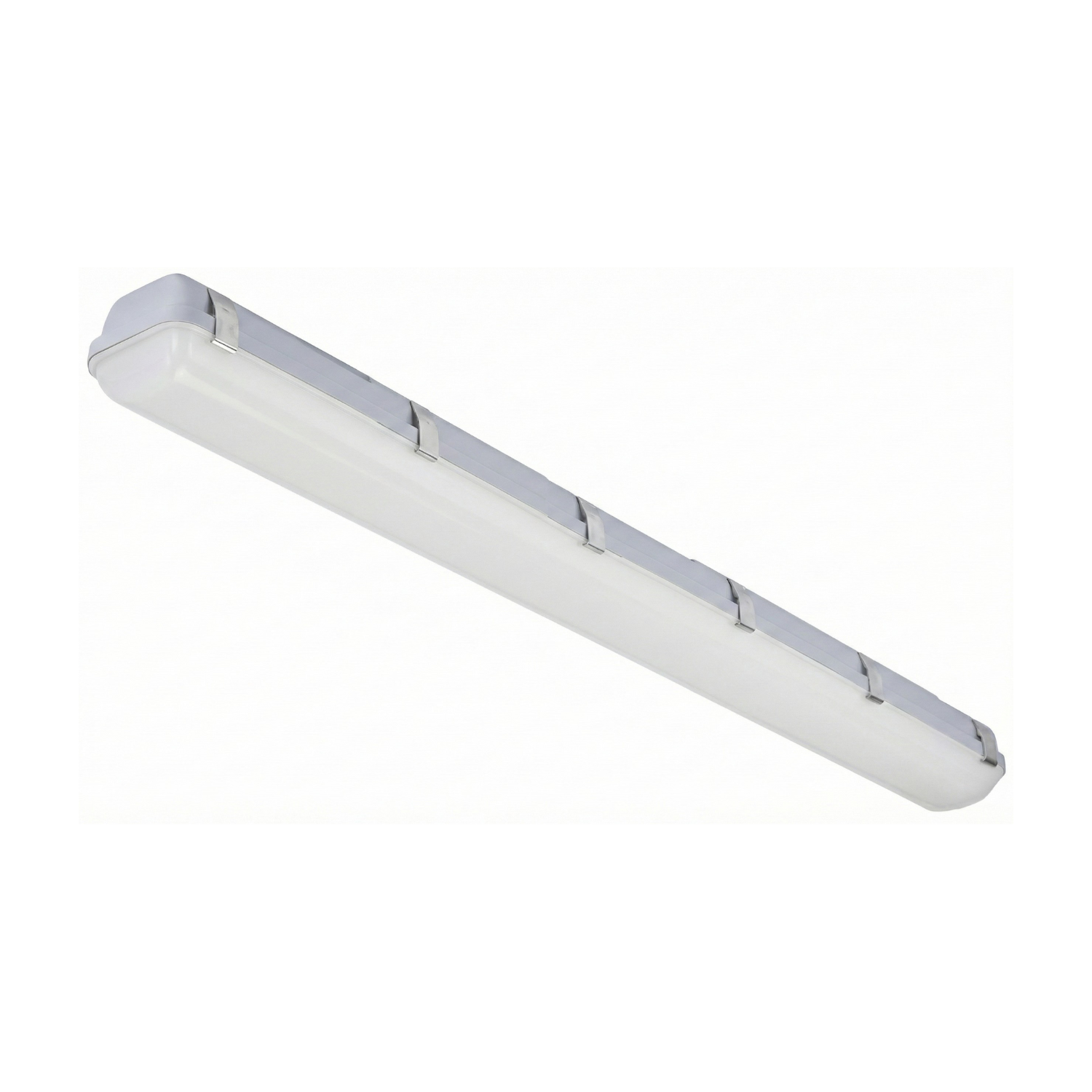

MVT04 Series Vapor Tight Fixture

The MVT04 Series Vapor Tight Fixture is designed to withstand rugged and demanding environments while delivering reliable, high-performance lighting. Available in 4-foot and 8-foot lengths, this fixture features a durable polycarbonate (PC) housing and stainless steel clips for easy installation and maintenance.

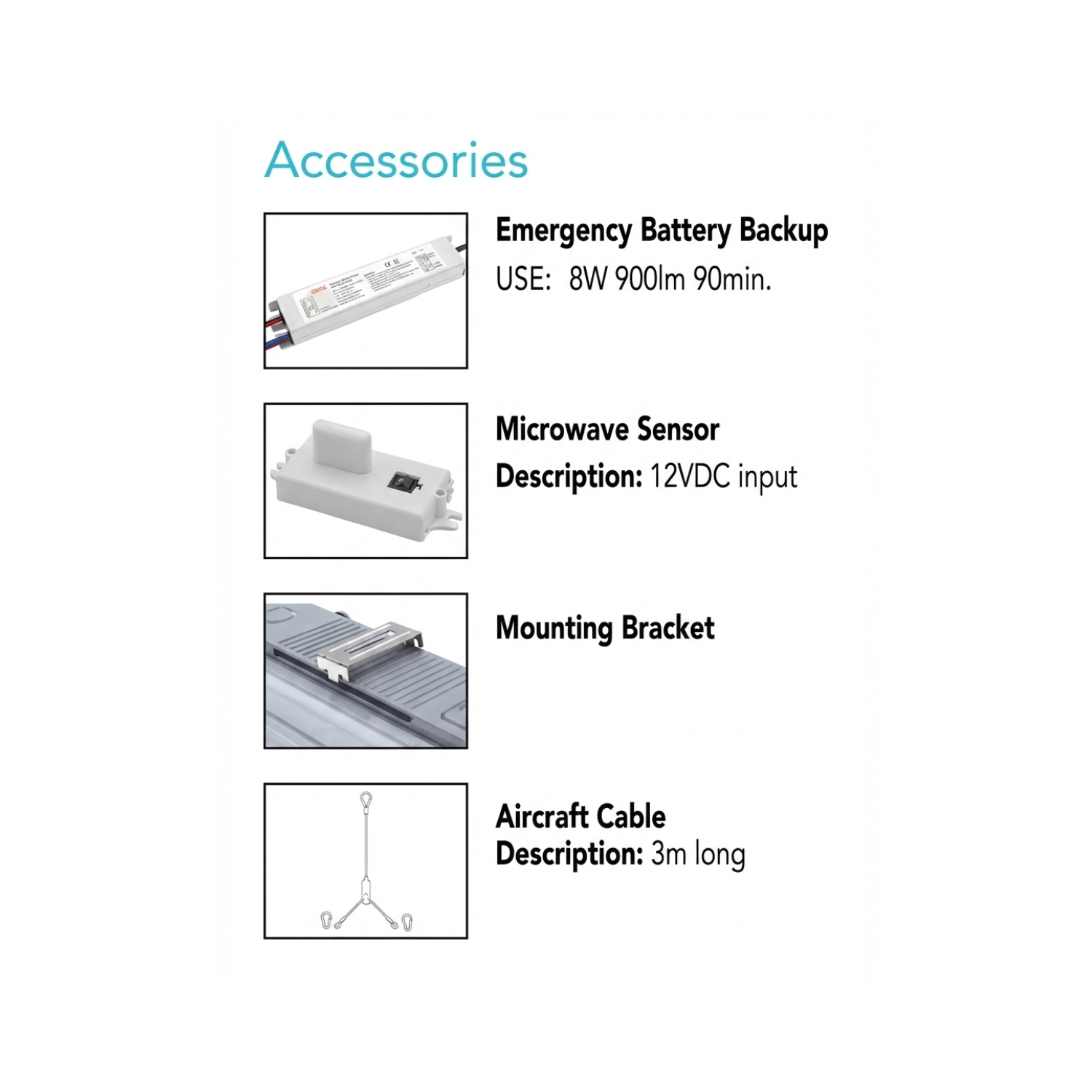

With field-adjustable lumen output and selectable color temperatures in a single fixture, the MVT04 series significantly reduces SKU complexity. Optional emergency battery backup and sensor controls provide added flexibility, making it an ideal solution for outdoor and industrial applications.

Housing

• High-quality PC material with excellent stability and durability

• Stainless steel clips for easy disassembly and installation

LEDs

• LM-80 certified, high-performance, reliable LEDs

• CRI 80

• CCT adjustable: 3500K / 4000K / 5000K

Electrical

• Universal input voltage: 120–277 VAC

• Standard 0–10V dimming (10%–100%)

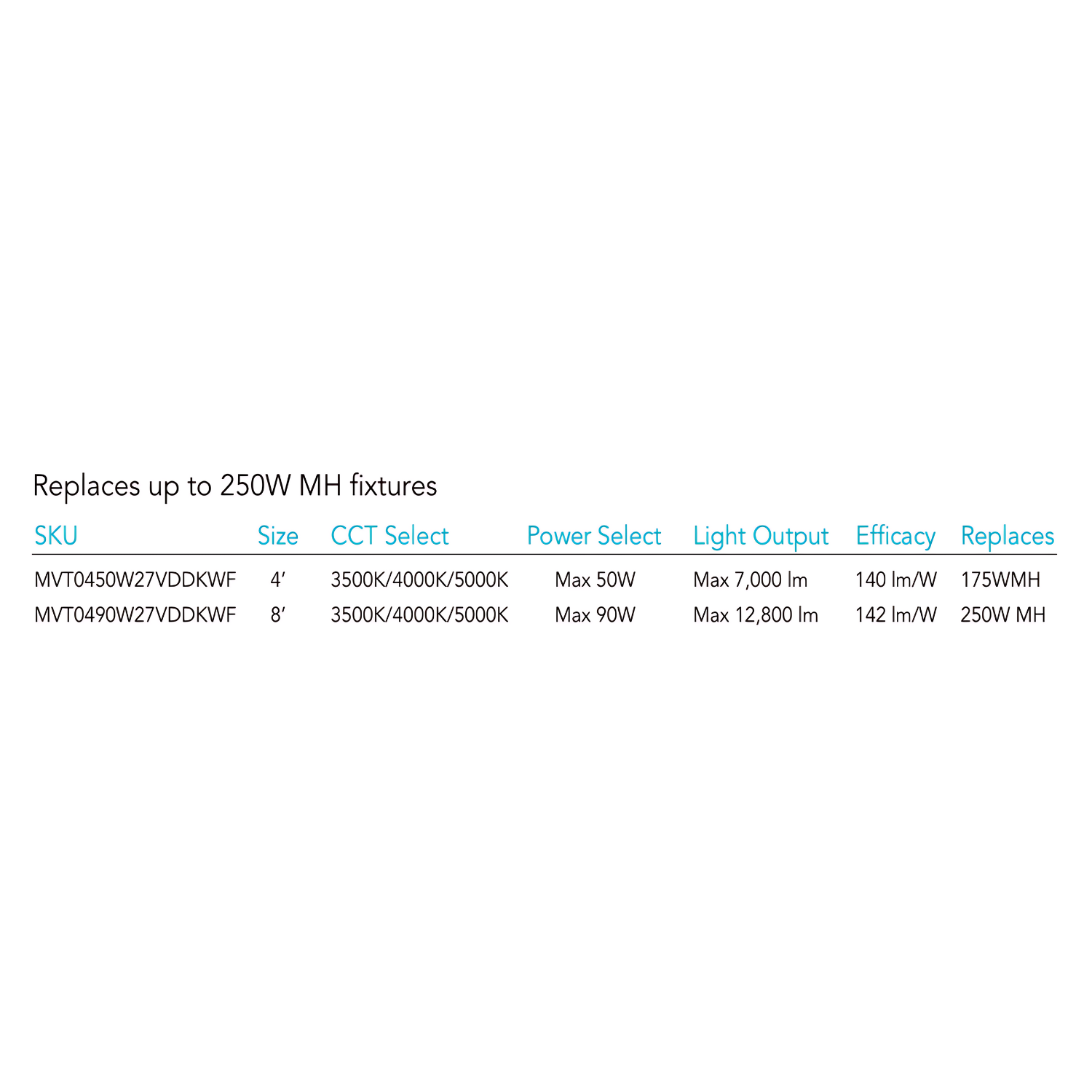

• 3-position wattage selection

Mounting Options

• Surface mount

• Suspension mount

Certifications & Ratings

• UL Listed

• Suitable for damp locations

• NEMA 4X rated

Recommended Applications

• Parking garages

• Commercial facilities

• Manufacturing and industrial spaces
