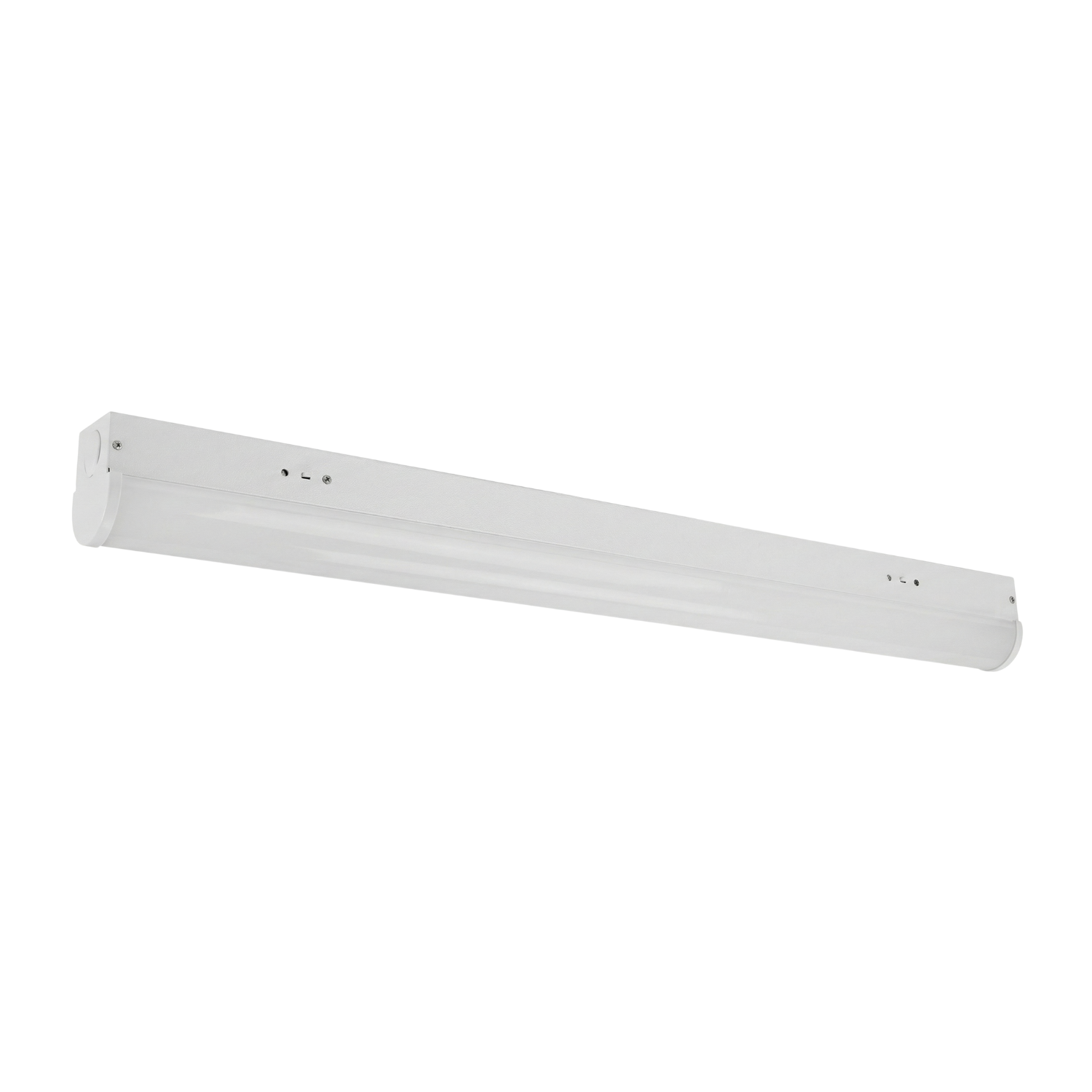

Linear Fixture Series

The Linear Fixture Series offers a balance of modern aesthetics, high performance, and flexible configuration options. Designed with integrated controls and innovative mounting accessories, it is well suited for a wide range of applications including commercial, retail, manufacturing, warehouse, cove, and display lighting.

When paired with occupancy sensors, dimming, and intuitive control systems, this fixture helps reduce energy consumption while extending overall fixture lifespan.

Housing

• Rugged cold-rolled steel housing with durable powder-coat finish

LEDs

• LM-80 certified, high-performance and reliable LEDs

• Optional CCT adjustable: 3000K, 4000K, 5000K

Electrical

• Universal input voltage: 120–277 VAC or 347–480 VAC

• Standard 0–10V dimming (10%–100%)

• Optional power adjustability: 100%, 80%, 60%, 40%

Mounting Options

• Surface mounting

• Chain mounting

Certifications

• UL Listed

• Suitable for damp locations

Ambient Operating Temperature

• -40°C to 40°C

Distribution Options

• Prismatic diffuser

• Aisle optics

• Narrow optics

Recommended Applications

• Retail environments

• Manufacturing facilities

• Commercial lighting applications
