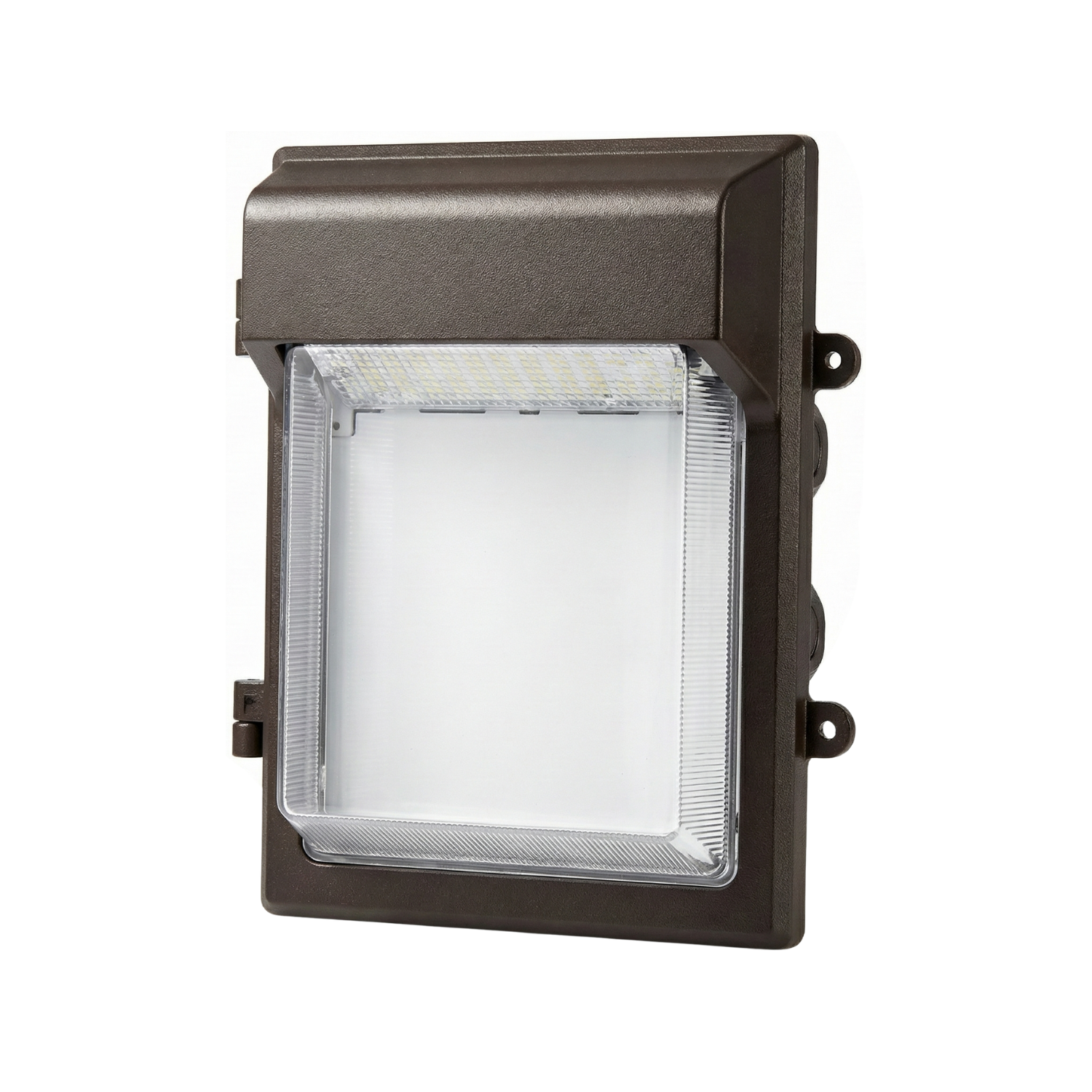

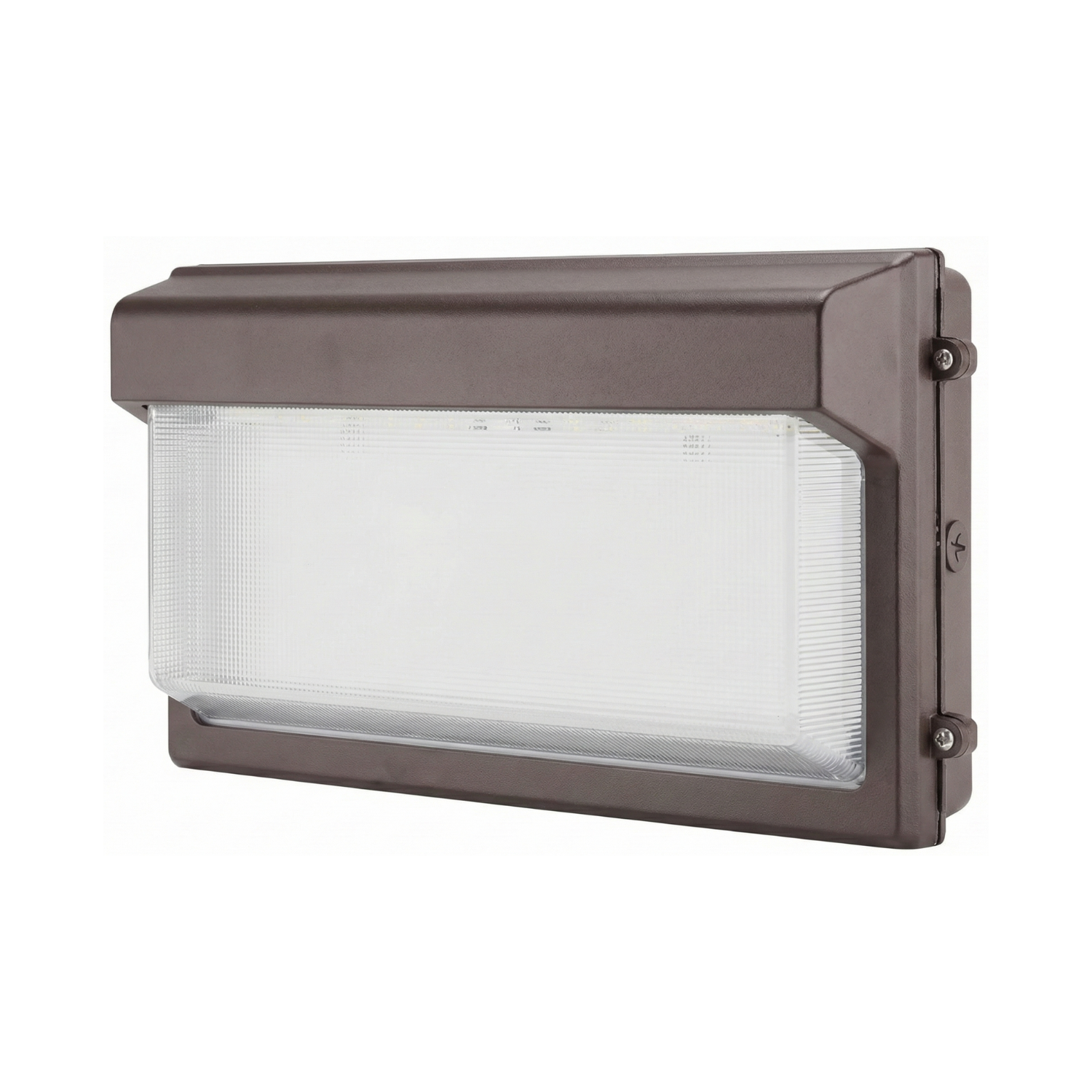

The MWP16, featuring an ultra-thin design, is a standard wall pack that delivers excellent lighting performance while meeting the budget-conscious requirements of customers. Its smooth, low-profile appearance seamlessly integrates into a variety of architectural styles without being obtrusive.

Available in two sizes, the MWP16 effectively covers unsightly stains left by typical metal halide wall packs. It also supports on-site adjustment of light output and color temperature, enhancing both installation and inventory flexibility.

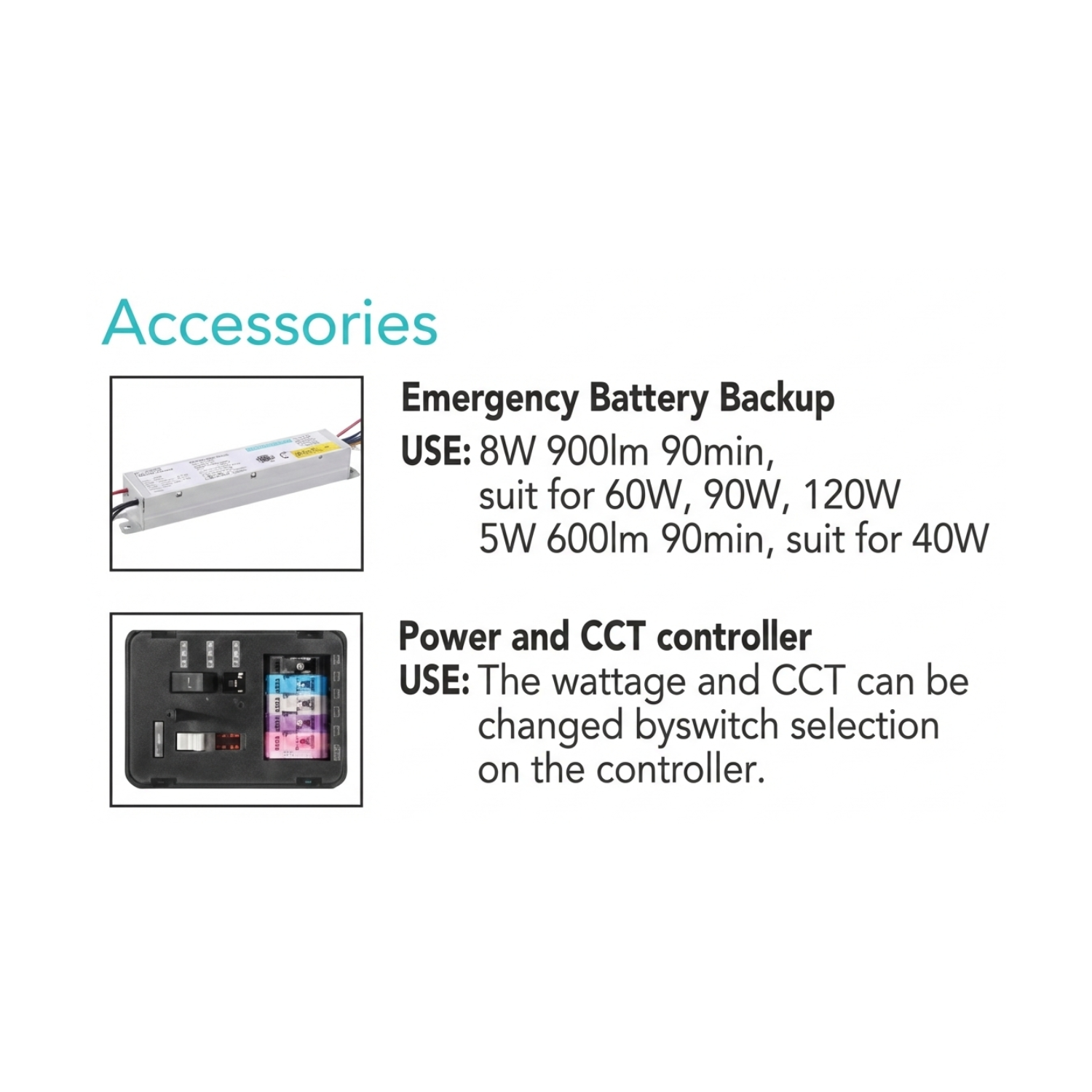

With options for UV-resistant polycarbonate lenses and durable glass lenses, along with features like photocell control and emergency lighting, the MWP16 is an ideal solution for illuminating commercial offices, warehouses, campuses, shopping malls, and other office complexes.

Housing

• Rugged die-cast aluminum, corrosion-resistant housing

• Dark bronze polyester powder-coat finish

LEDs

• LM-80 certified, high-performance and reliable LEDs

Electrical

• Universal 120–277 VAC input voltage

• Optional 0–10V dimming (10%–100%)

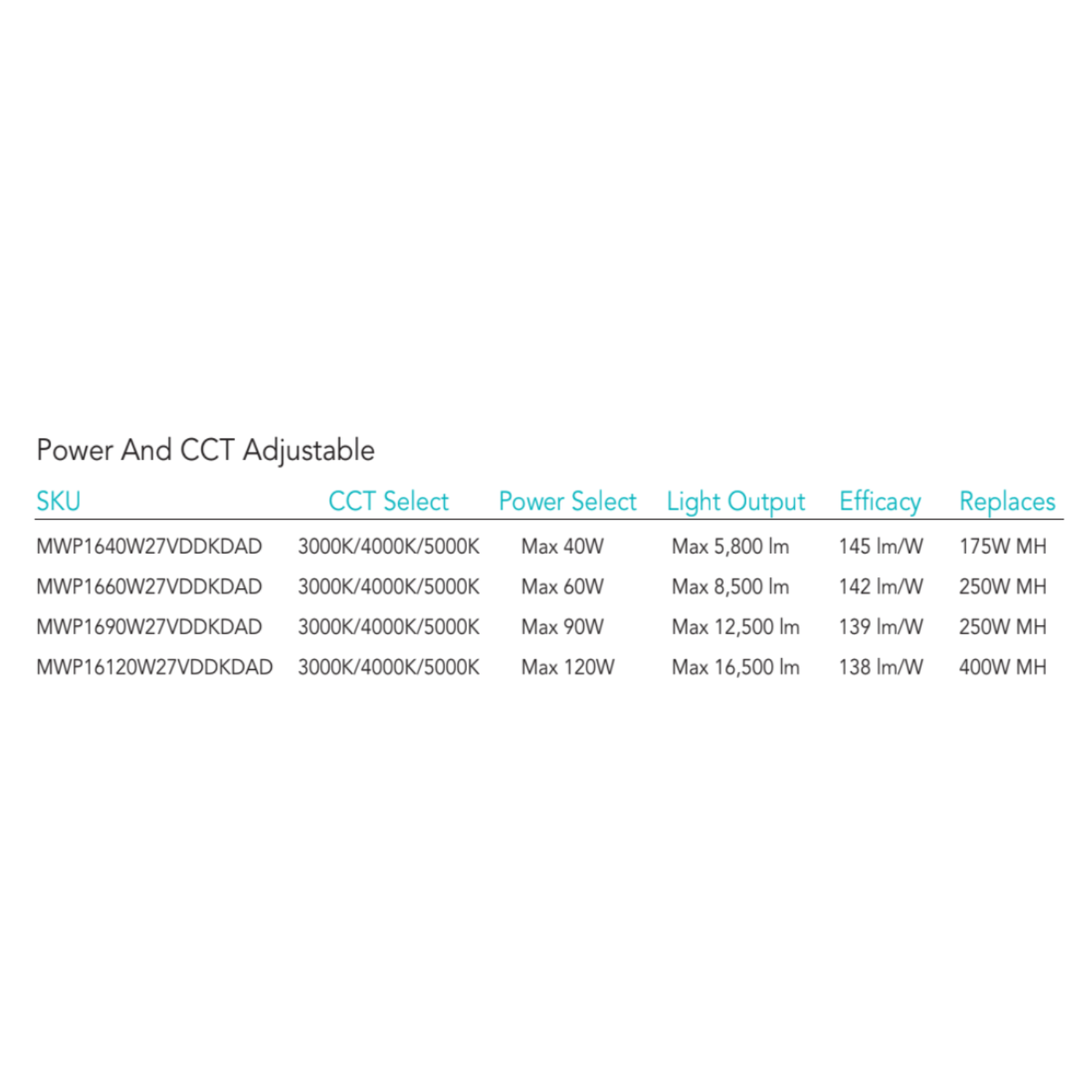

• Four-position wattage regulation for each model

Mounting

• Junction box or wall mount

UL Listing

• Rated for wet locations

Recommended Use

• Pathways

• Building entryways

• Perimeter lighting
