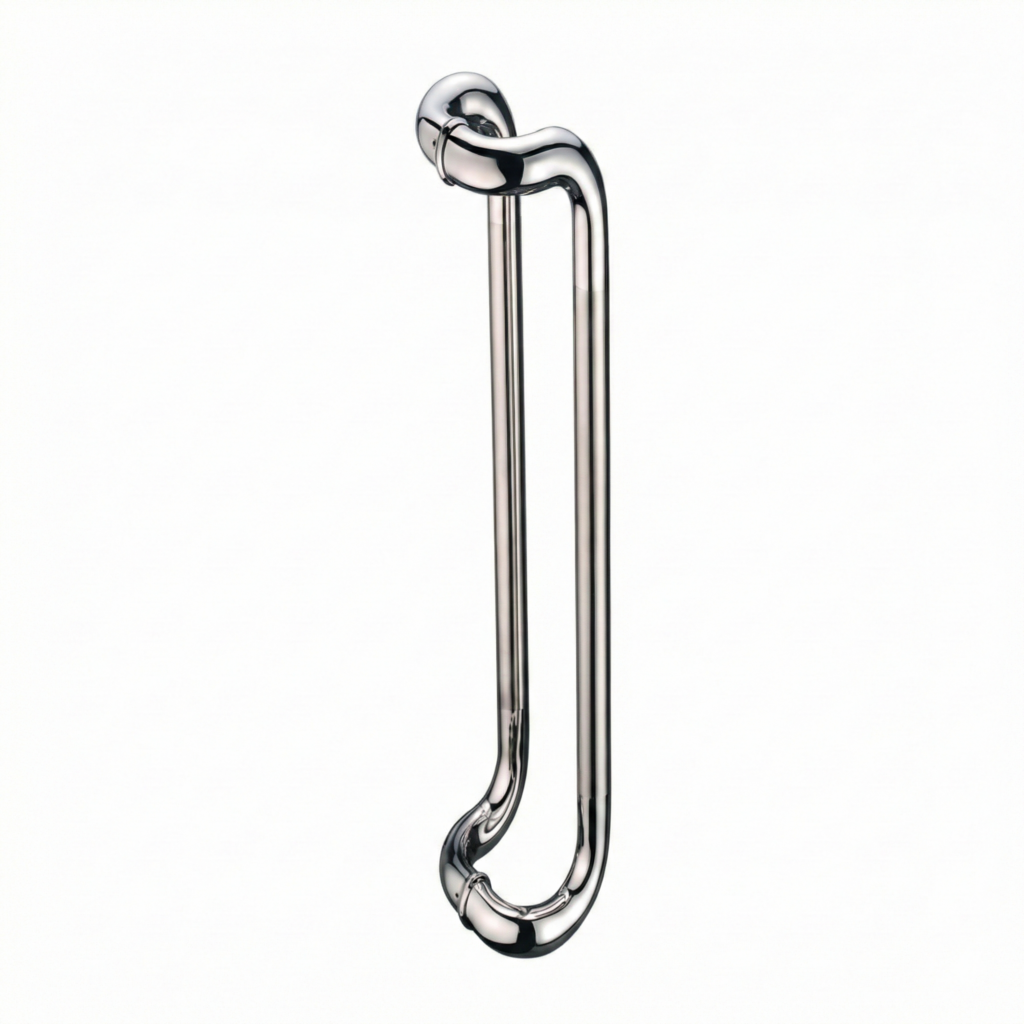

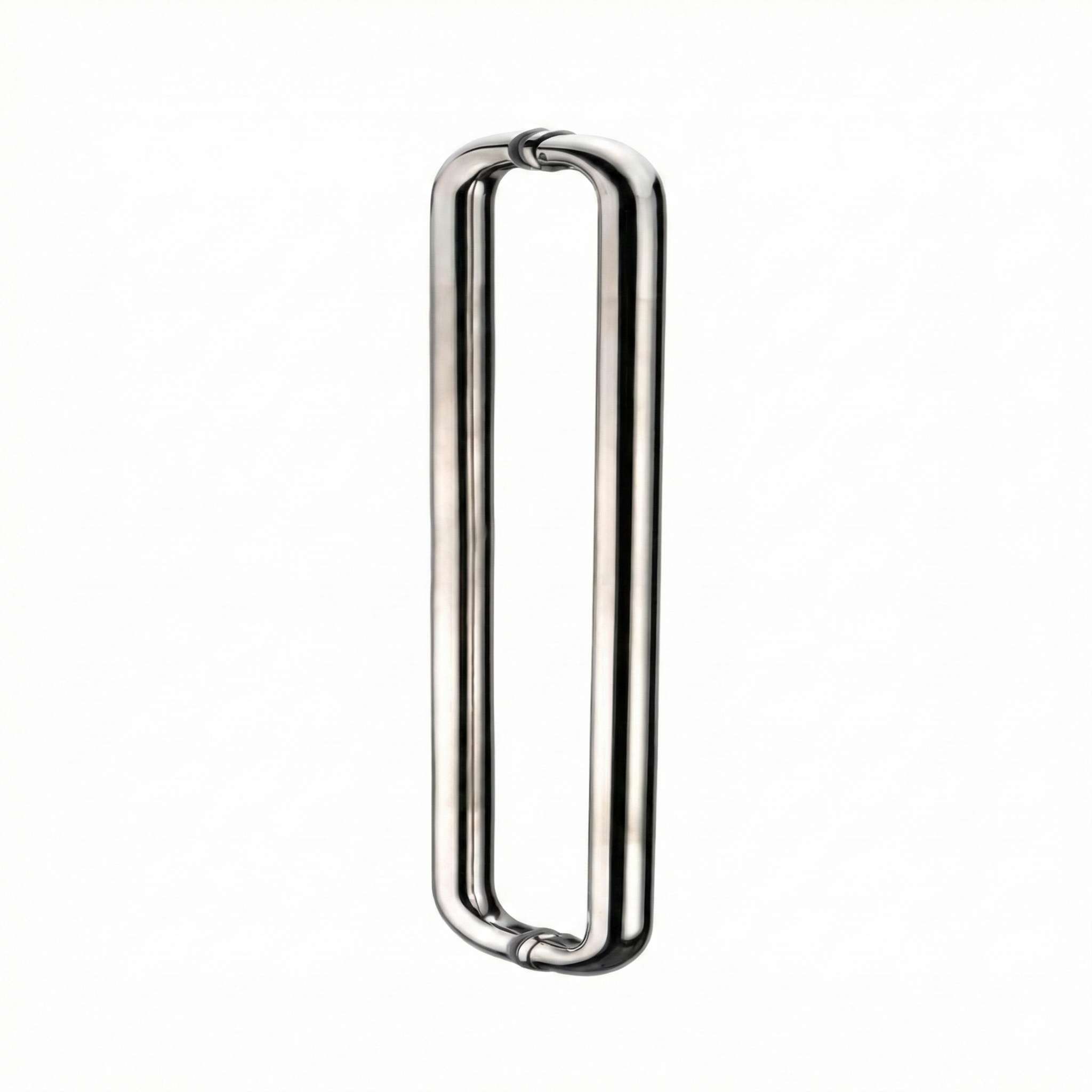

Type: Stainless Steel Handle (Small)Â Â
Main Material: S.S 304
Surface Finish: Mirror / Satin
Applicable Door Type: Wooden door, glass door, framed door, and more
Applicable Door Thickness: 10-50mm
(For doors thicker than 50 mm, the coupling screw needs to be replaced.)Â
Drilling Size:
Guaranteed Safe Checkout

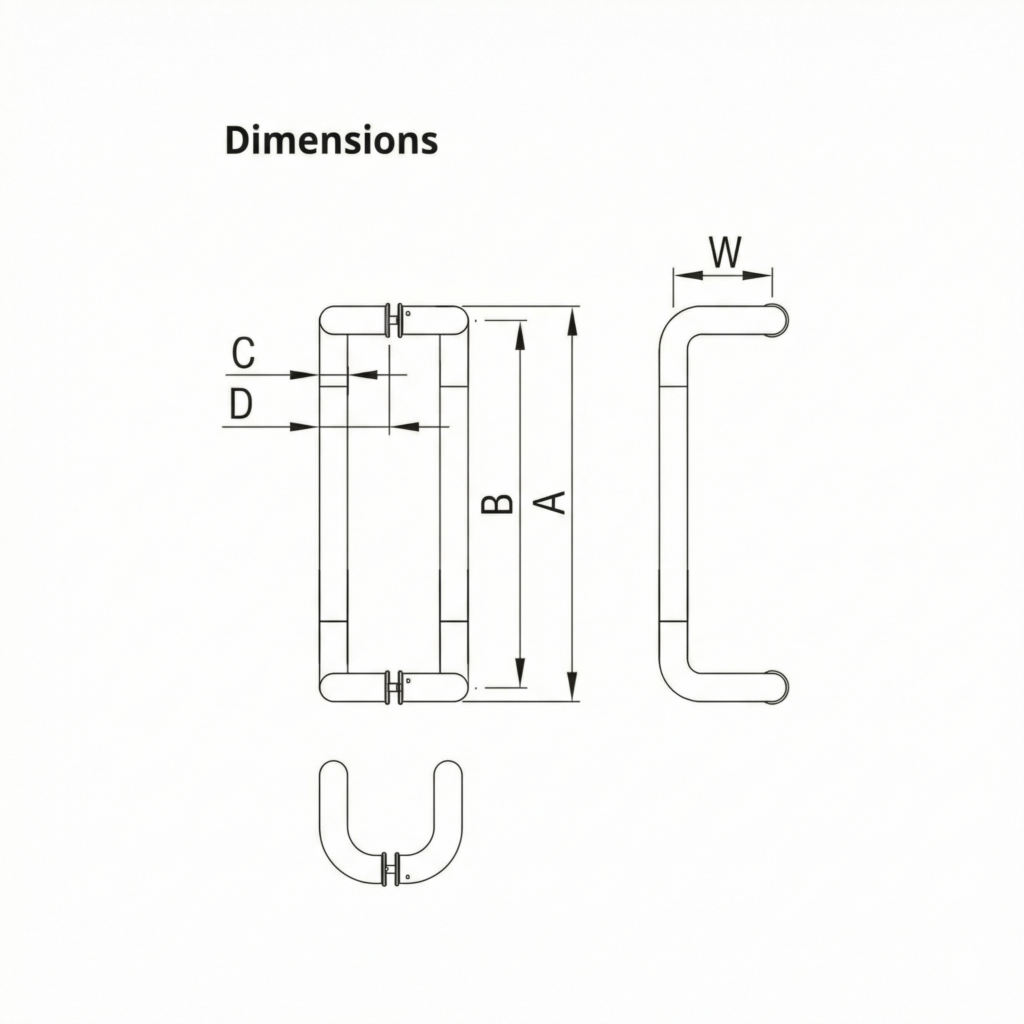

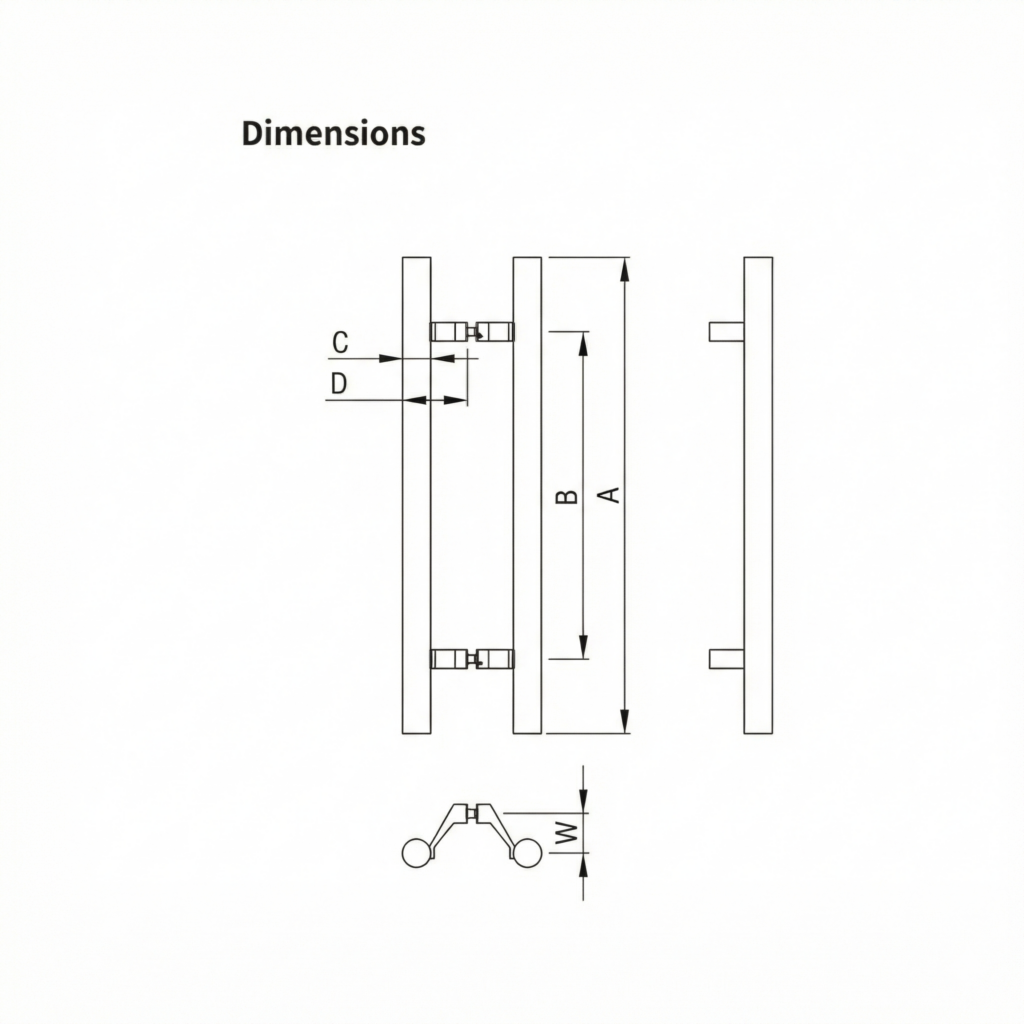

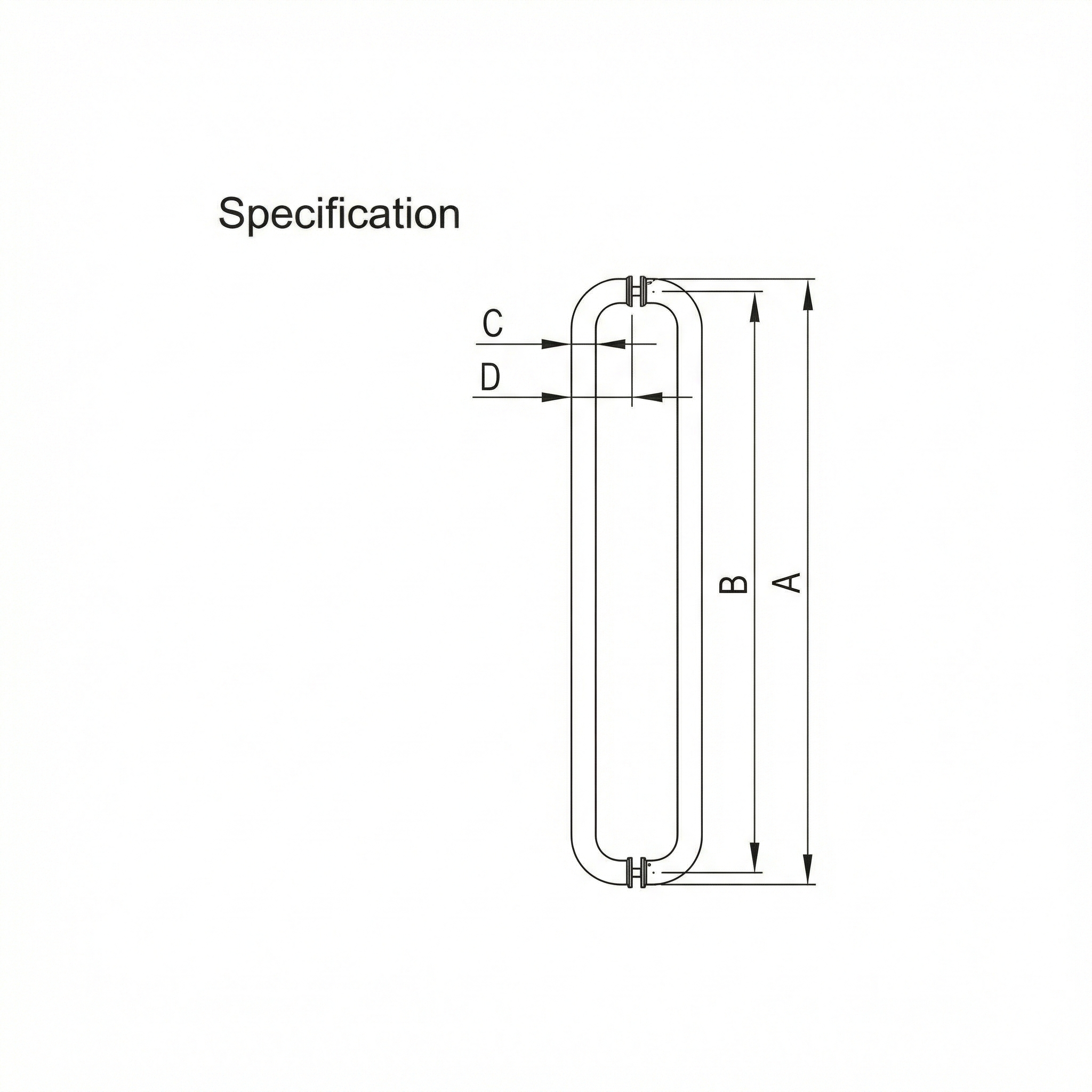

Specification
KLS40102 – A: 275 mm, B: 250 mm, C: Φ25 × 0.8 mm, D: 72 mm
KLS40103 – A: 330 mm, B: 305 mm, C: Φ25 × 0.8 mm, D: 72 mm
KLS40104 – A: 482 mm, B: 450 mm, C: Φ25 × 0.8 mm, D: 82 mm
KLS40106 – A: 632 mm, B: 600 mm, C: Φ25 × 0.8 mm, D: 82 mm
