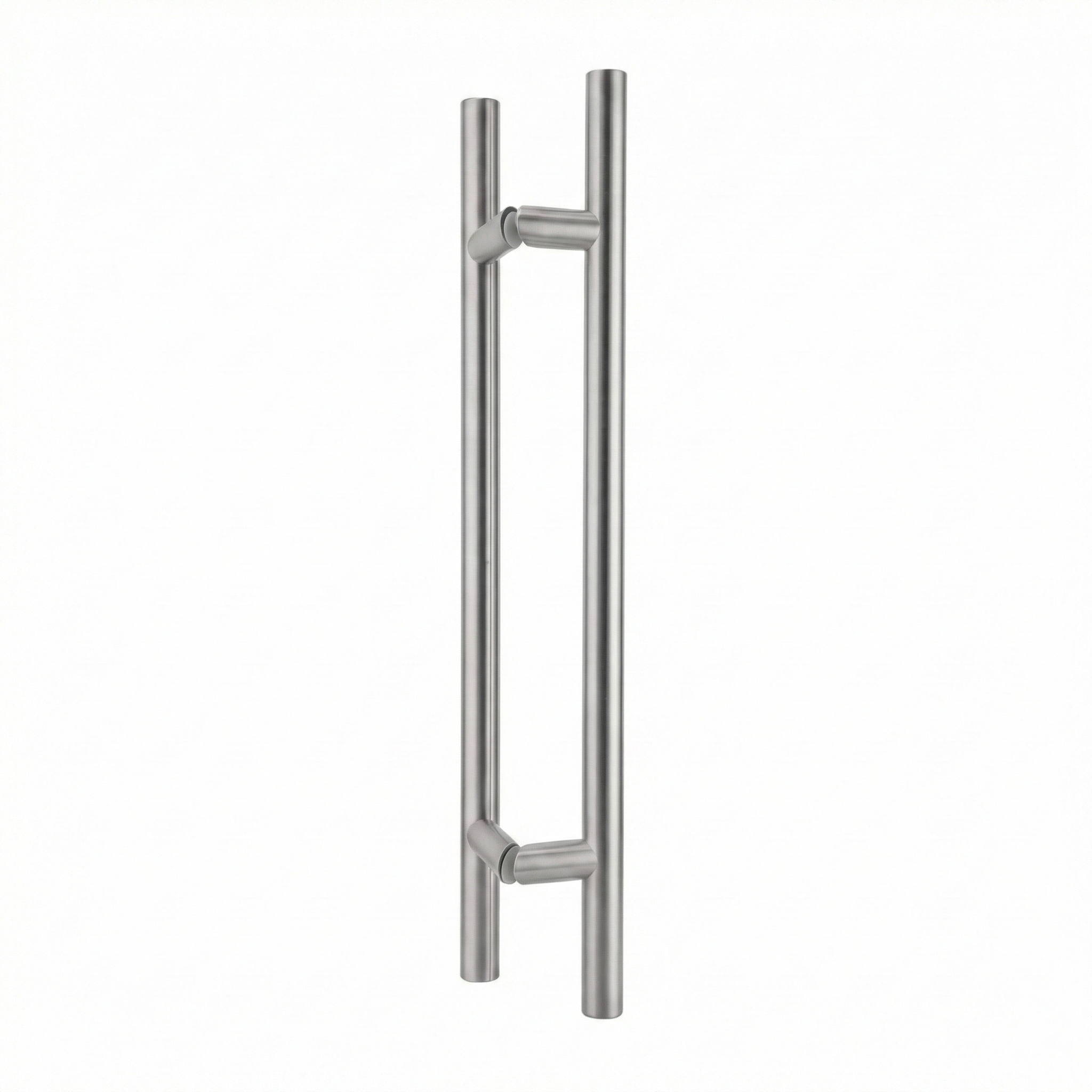

Type: Stainless Steel Handle (Big)
Main Material: S.S 304
Surface Finish: Satin
Applicable Door Type: Wooden door, Glass door, Framed door, and more
Applicable Door Thickness: 10–50 mm
(For doors thicker than 50 mm, the coupling screw needs to be replaced)Â
Drilling Size:
Guaranteed Safe Checkout

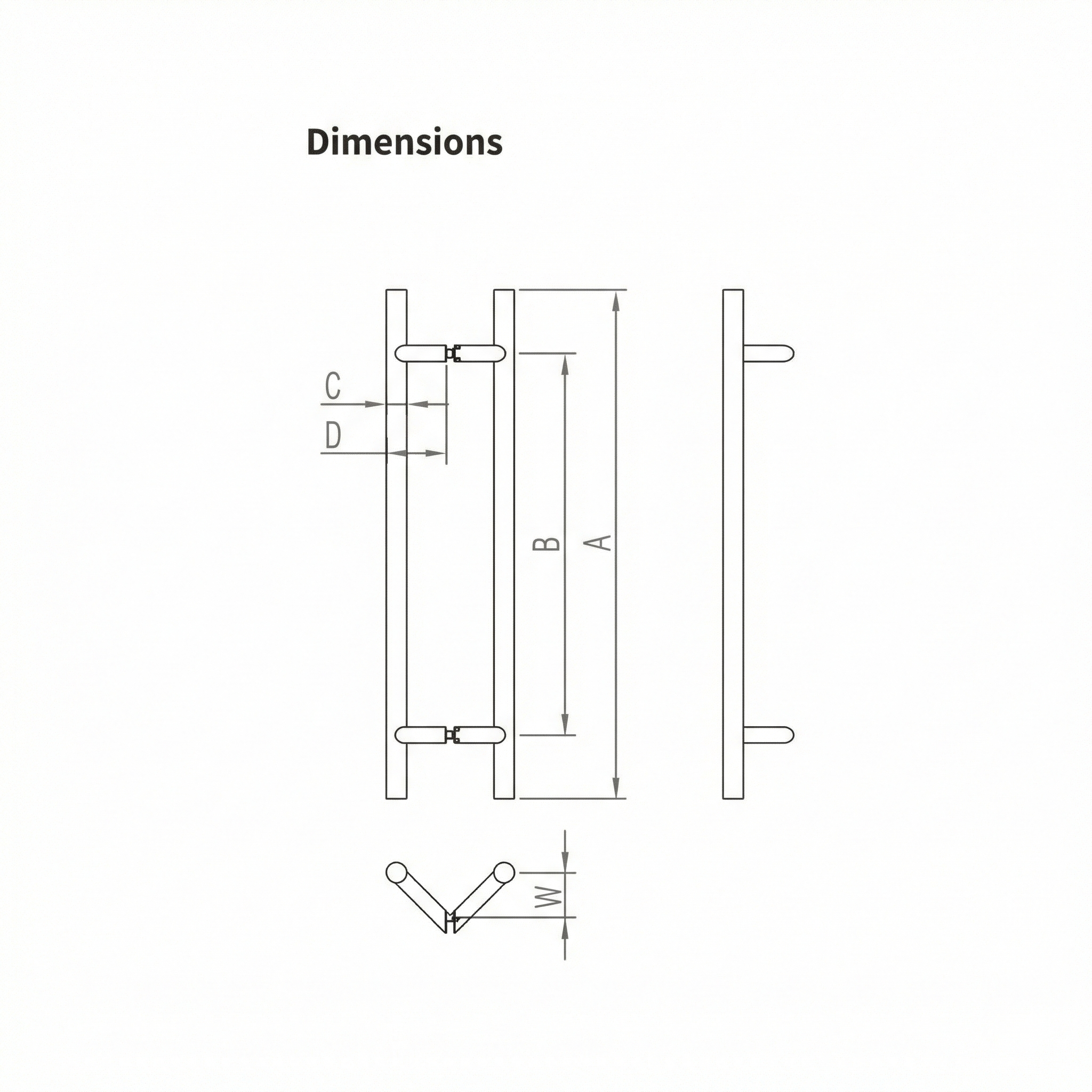

Specification
KLS20506 – A: 600 mm, B: 400 mm, C: Φ32 × 1.2 mm, D: 94.5 mm, W: 70.5 mm
KLS20508 – A: 800 mm, B: 600 mm, C: Φ32 × 1.2 mm, D: 94.5 mm, W: 70.5 mm
KLS20510 – A: 1000 mm, B: 800 mm, C: Φ32 × 1.2 mm, D: 94.5 mm, W: 70.5 mm
