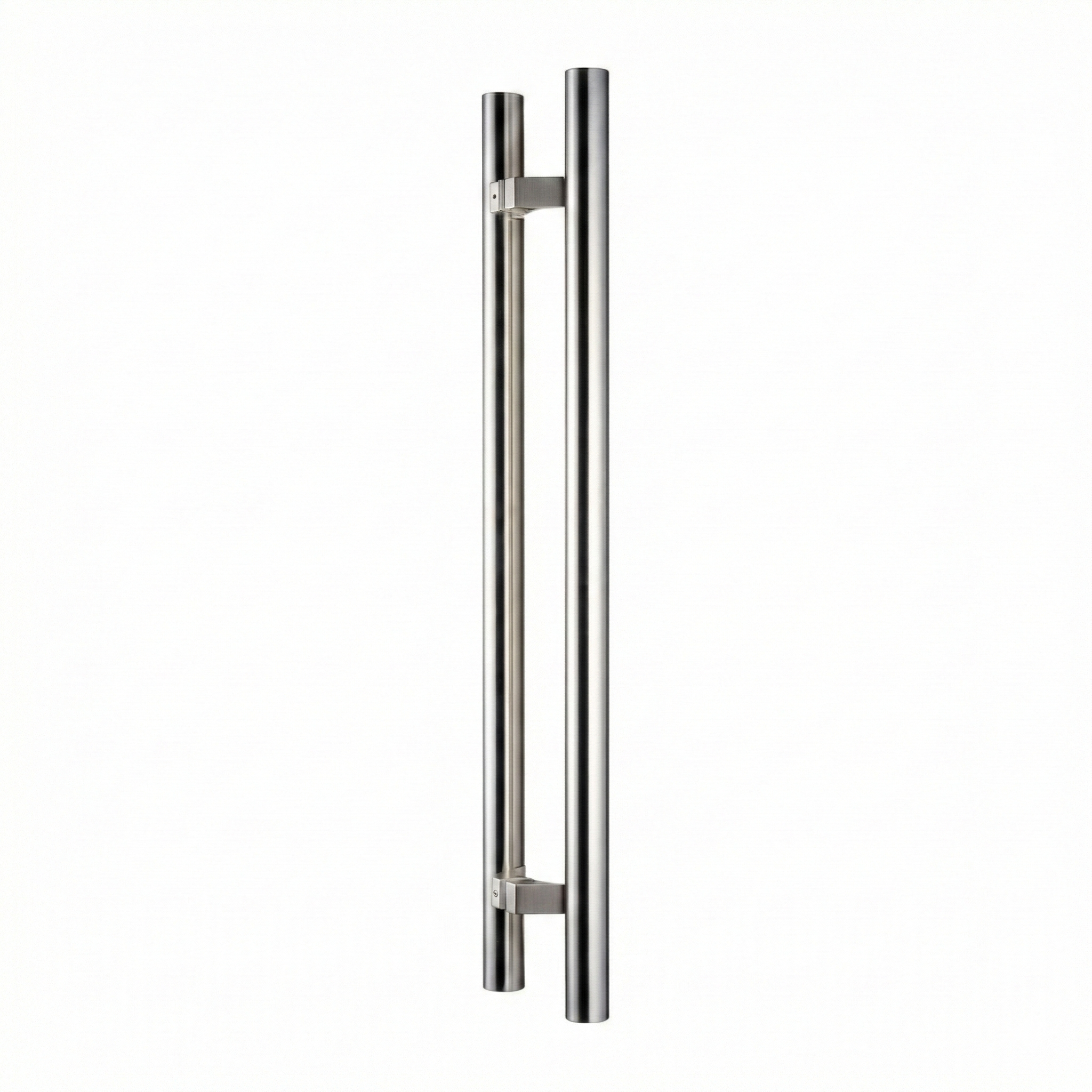

AeroHandle

Type: Stainless Steel Handle (Big)
Main Material: S.S 304
Surface Finish: Satin
Applicable Door Type: Wooden door, Framed door, and more
Applicable Door Thickness: 10–50 mm
(For doors thicker than 50 mm, the coupling screw needs to be replaced)
Drilling Size:

  • Glass doors: Φ14 mm
  • Wooden or framed doors: Φ10 mm

Guaranteed Safe Checkout

Features & Compatibility

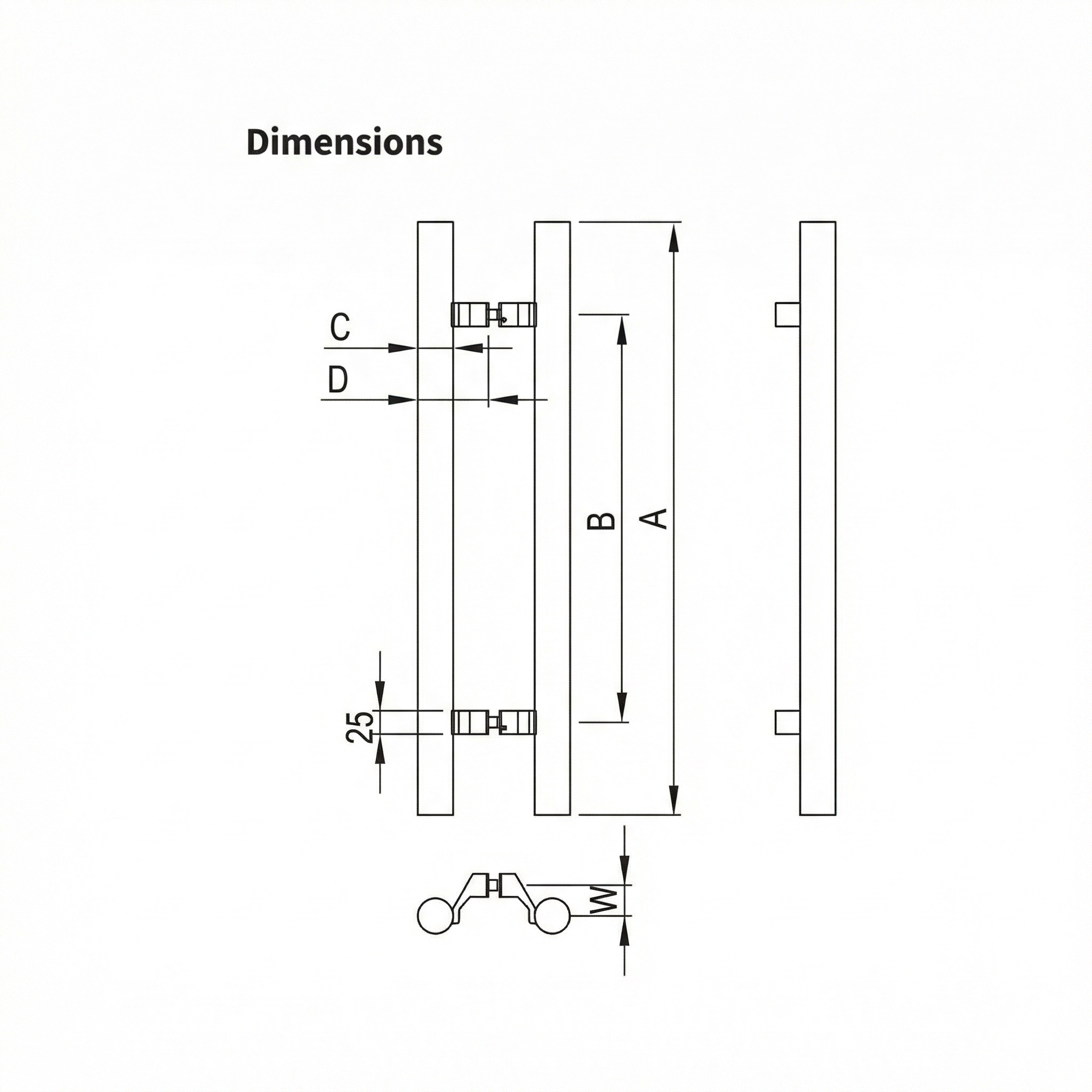

Specification

  • KLS20408 – A: 800 mm, B: 600 mm, C: Φ38 × 0.8 mm, D: 70 mm, W: 33 mm

  • KLS20410 – A: 1000 mm, B: 800 mm, C: Φ38 × 0.8 mm, D: 70 mm, W: 33 mm

  • KLS20412 – A: 1200 mm, B: 1000 mm, C: Φ38 × 0.8 mm, D: 70 mm, W: 33 mm

  • KLS20415 – A: 1500 mm, B: 1300 mm, C: Φ38 × 0.8 mm, D: 70 mm, W: 33 mm

  • KLS20418 – A: 1800 mm, B: 1500 mm, C: Φ38 × 0.8 mm, D: 70 mm, W: 33 mm

  • KLS20420 – A: 2000 mm, B: 1700 mm, C: Φ38 × 0.8 mm, D: 70 mm, W: 33 mm
