Specification
-

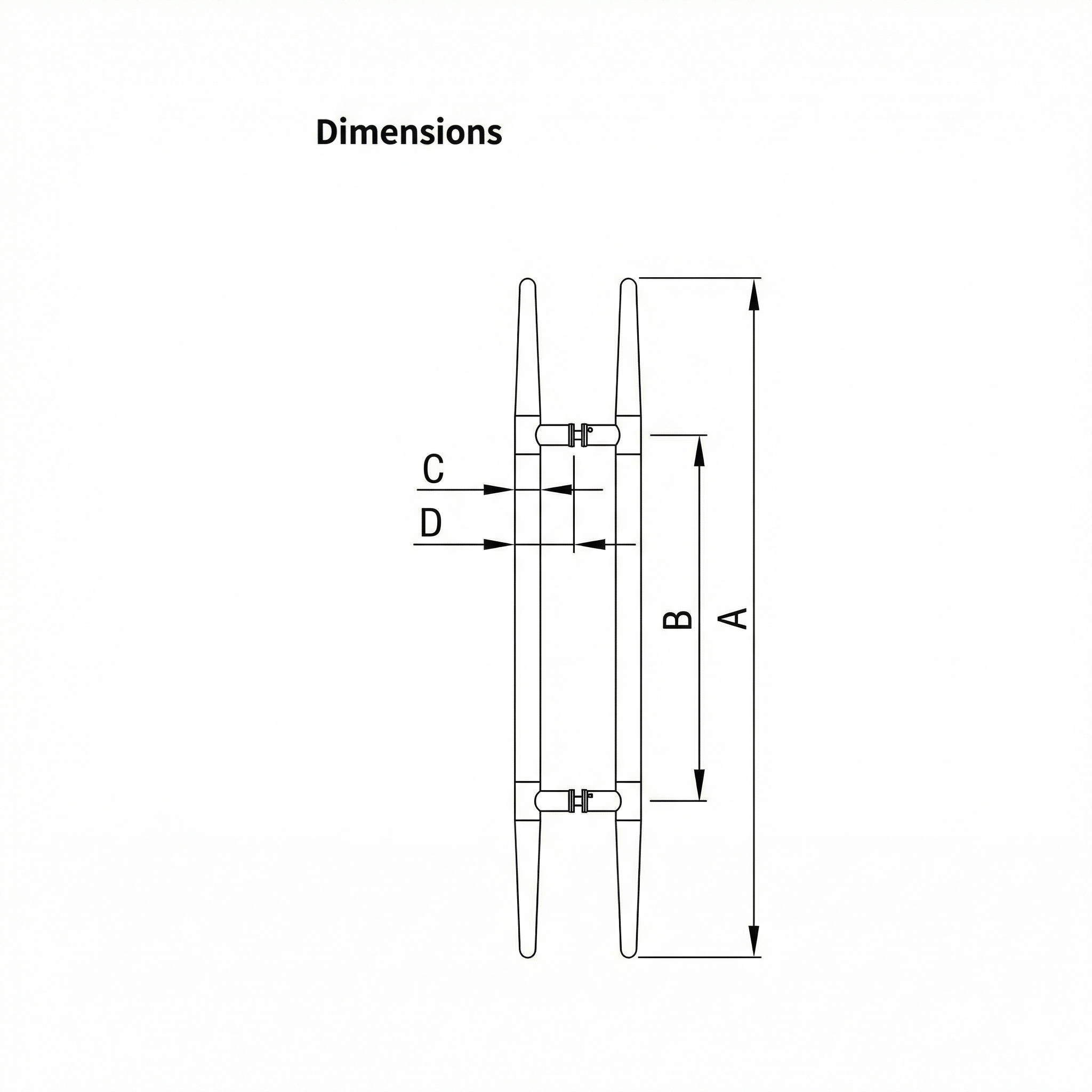

KLS16708 – A: 800 mm, B: 400 mm, C: Φ32 × 1.2 mm, D: 72 mm
-
KLS16710 – A: 1000 mm, B: 500 mm, C: Φ32 × 1.2 mm, D: 80 mm
-
KLS16712 – A: 1200 mm, B: 600 mm, C: Φ32 × 1.2 mm, D: 80 mm
PureTouch

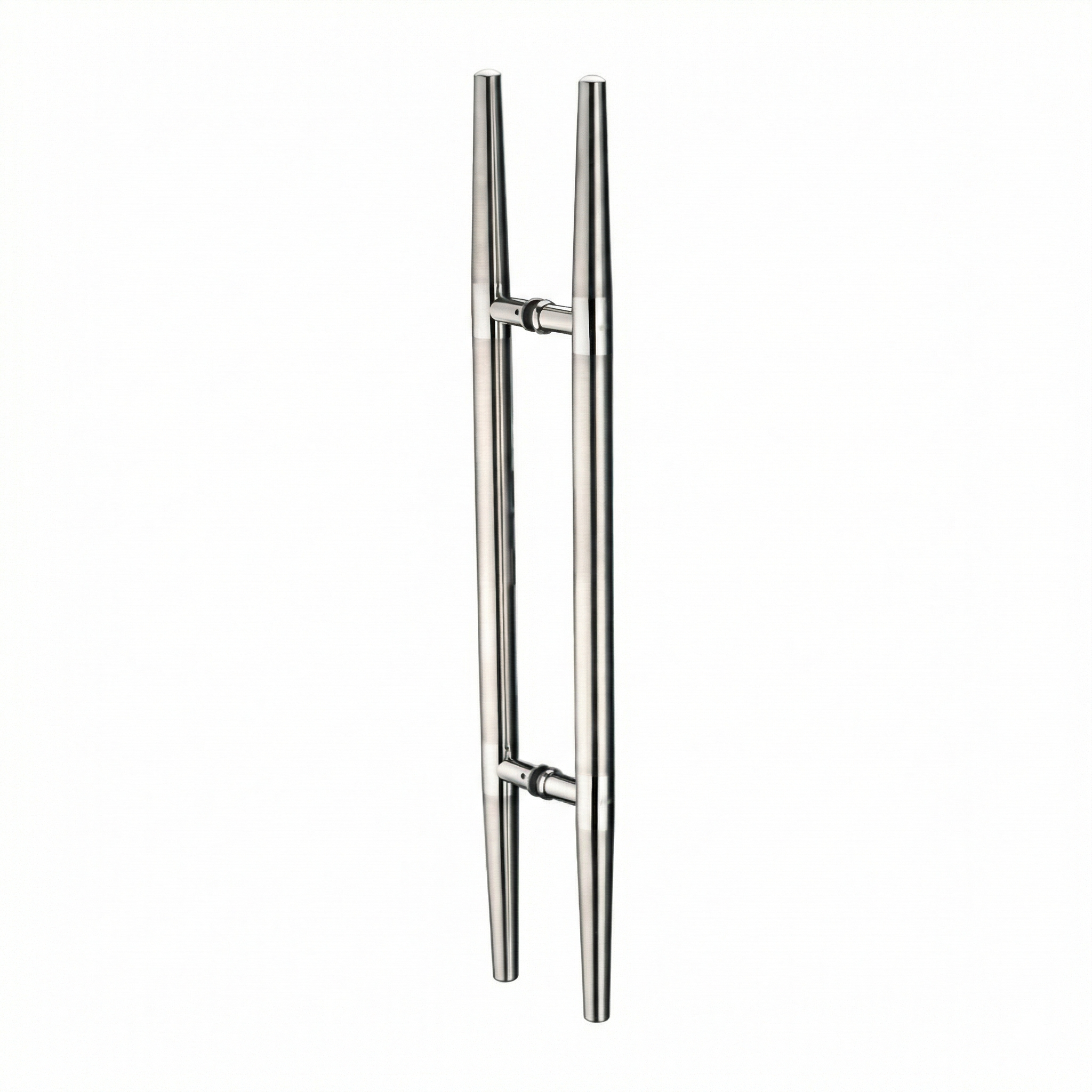

Type: Stainless Steel Handle (Big)
Main Material: S.S 304
Surface Finish: Mirror + Satin
(Supporting area is mirror + other area is satin)
Applicable Door Type: Wooden door, Glass door, Framed door, and more
Applicable Door Thickness: 10–50 mm
(For doors thicker than 50 mm, the coupling screw needs to be replaced)Â
Drilling Size:
- Glass doors: Φ14 mm
- Wooden or framed doors: Φ10 mm
